Mazak Ultra 650 Horizontal Machining Center

Stock # K15291

Used Mazak Ultra 650 Horizontal Machining Center For Sale, Used MAZAK 2-Pallet Horizontal Machining Center For Sale

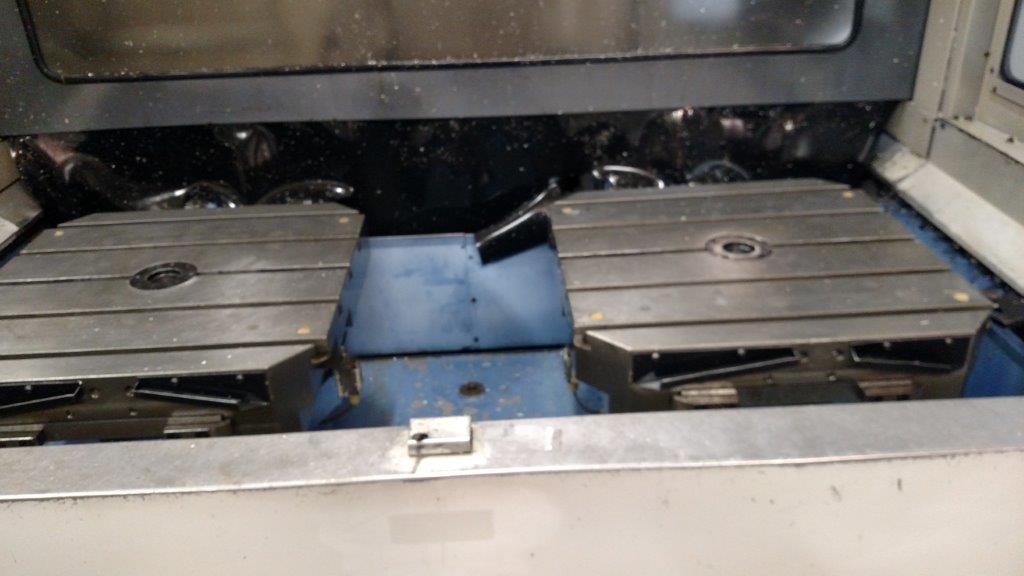

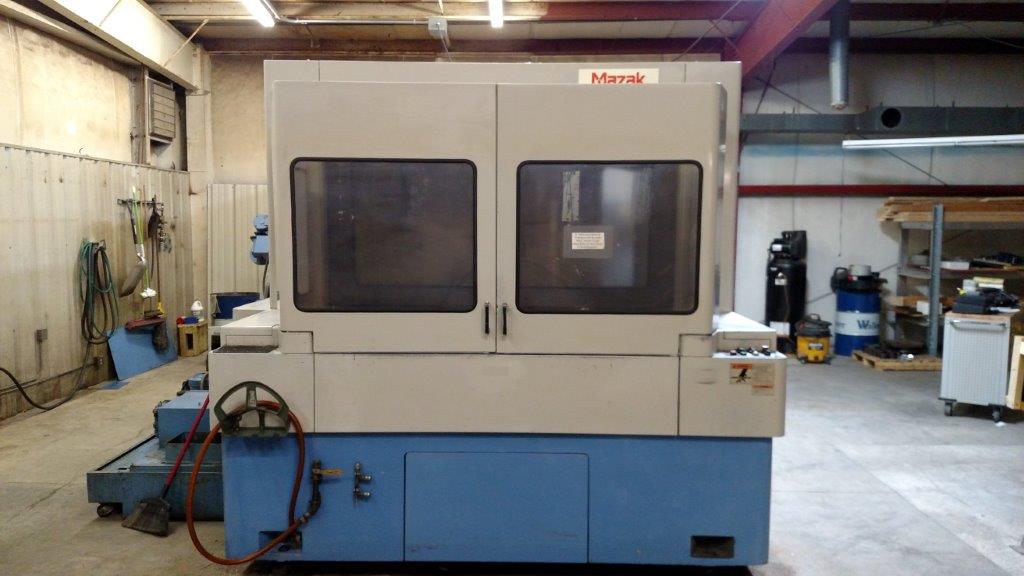

ACTUAL PHOTOS

                                  MAZAK 2-Pallet Horizontal Machining Center
                                      Model ULTRA 650, S/N 132705, New 1997
                                                            Stock# K15291

EQUIPPED WITH:
Mazatrol M-Plus Control, NC Rotary Table, Chip Conveyor, Additional EIA/ISO Function, Mazak 3D High-Speed Software, Full 4th Axis Pallet Rotation, Monitoring System B,
Inch/ Metric Conversion Function, PMC Preparation.

CATALOG SPECIFICATIONS:
Pallet Size......................................................... 24.8" x 24.8"
Number of Pallets.............................................. 2
Table Load Capacity.......................................... 3000 lbs
Pallet Indexing Positions................................... 360,000
X-Axis Travel..................................................... 40"
Y-Axis Travel..................................................... 31.5"
Z-Axis Travel..................................................... 31.02"
Distance From Spindle Center to Table Top..... 1.97" - 33.5"
Distance From Spindle Nose to Table Center... 6.69" - 37.72"
Spindle Speed Range....................................... 35-7000 RPM
Spindle Nose..................................................... ISO # 50
Tool Shank Configuration.................................. CAT # 50
Tool Magazine Capacity..................................... 80
Max. Tool Diameter............................................ 5.31"
With Adjacent Pockets Empty.......................... 10.24"
Max. Tool Length............................................... 18.50"
Max. Tool Weight............................................... 59.4 lbs
Rapid Traverse Rate......................................... 1000 IPM
Main Spindle Motor ( Cont./ 30 Min. ).................AC 30/35 HP
Machine Height................................................. 126.77"
Floor Space Requirements................................ 140.4" x 203.3"
Machine Weight................................................. 39,700 LBS

CONDITION: From Cessna Aerospace Facility. Appears to be in Good Condition!
