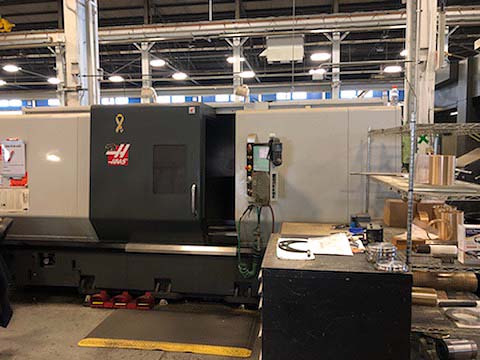

HAAS ST-40M-BB CNC TURNING CENTER
          Model ST-40TM-BB,  New 8/2012
                              Stock # K15294

EQUIPPED WITH:

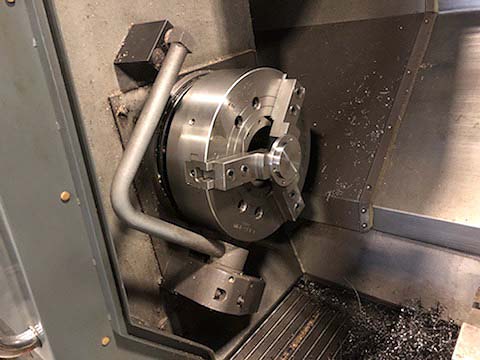

Haas CNC Control, 18" 3-Jaw Power Chuck, Tool Presetter, RS-232 & USB

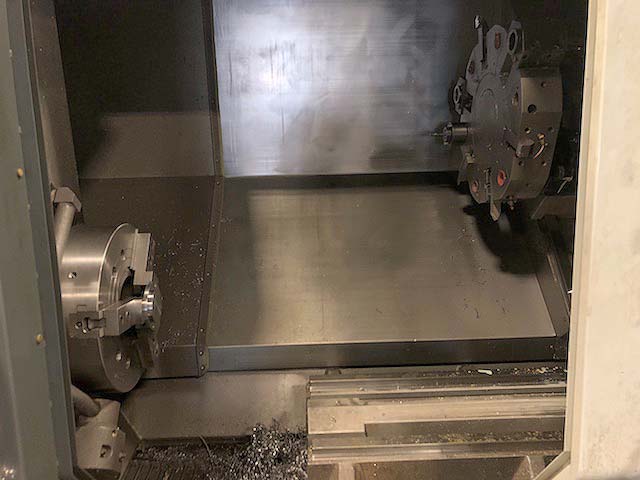

Port, Ethernet Interface, 12 Position Turret with 6 VDI Live Tool Positions,
Big Bore Option with 7? Thru Hole,  18?-3Jaw Power Chuck with 6.5? Thru Hole
Programmable Servo Tailstock, High Torque Live Tooling, Steady Rest Provision,
Haas Intuitive Programming, Visual Quick Code, Spindle Orientation,
2-Range Geared Spindle, Work Surface Sensing Probe, Belt-Type Chip Conveyor,
Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over Bed...................................... 34.5"
Max Swing Over Carriage............................... 25.5"
Max Machinable Center Distance................... 40"
Max Distance Between Centers...................... 44"
Standard Chuck Size...................................... 18"
Cross Travel (X-Axis)...................................... 17"
Longitudinal Travel (Z-Axis)............................ 44"
Rapid Traverse Rates..................................... 710 IPM
Number of Turrets........................................... 1
Tool Positions.................................................. 12 Total
Spindle Bore................................................... 7"
Bar Capacity................................................... 6.5"
Spindle Nose.................................................. A2-11
Spindle Speed Range (Maximum)................. 1400 RPM
Spindle Horsepower....................................... 40 HP
Approximate Dimension................................. 229" x 103"
Approximate Height........................................ 96"
Approximate Machine Weight......................... 27,300 LBS

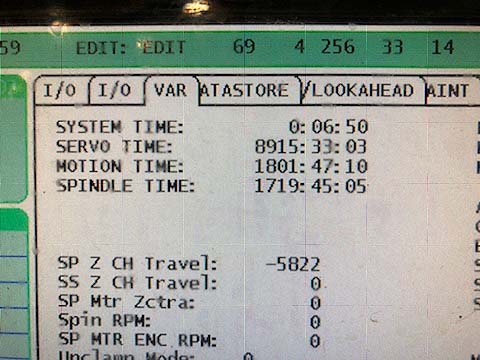

 CONDITION:  Only 1719 Spindle Hours.
                        Machine Appears to be in Excellent Condition!
