MAZAK INTEGREX 400iii-ST CNC TURNING/MILLING CENTER
                                                         Model Integrex 400iiiST-1500, S/N 174657, New 2005
                                                                                         Stock # K15295
EQUIPPED WITH:
Mazak Mazatrol Fusion 640MT-Pro CNC Control, 5-Axis Contouring Software Package,
Universal B-Axis Milling Head with 40 Station Automatic Tool Changer, 9 Position Lower Turret,

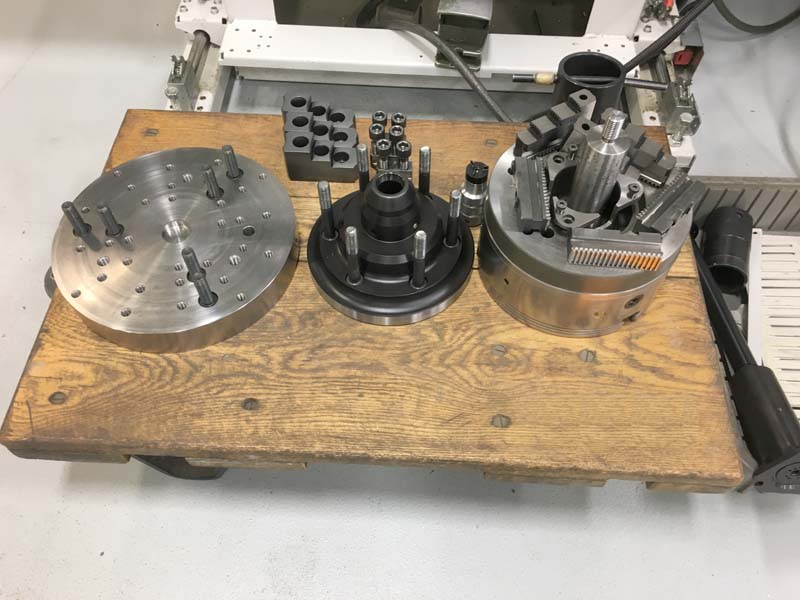

Sub-Spindle, 12" 3-Jaw Chuck on Main Spindle, 10" 3-Jaw Chuck on Sub-Spindle, Automatic
Tool Eye, Full C, B, and Y Axis, LNS Servo S3 Magazine Bar Feeder, Part Catcher, High
Pressure Coolant, Renishaw Probing, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant Bed.................................... 24.02"
Max Swing Over the Carriage..................................... 15.85"
Max Turning Length..................................................... 60"
Cross Travel of Universal (X1-Axis)............................. 24.8"
Longitudinal Travel of Universal Head (Z1-Axis)......... 62.4"
Y-Axis Universal Head Travel (Y-Axis) +/- 4.53".......... 9.06"
Cross Travel Of Lower Turret...................................... 9.05"
Longitudinal Travel of Lower Turret............................. 60.23"
C-Axis Spindle Rotation Main and Sub....................... 360,000
B-Axis Universal Head +30/-195................................. 225 Degree
Tool Changer Capacity................................................ 40 Total
Rotary Tool Spindle..................................................... 25 HP
Rotary Tool Spindle Speed Range.............................. 35-12000 RPM (KM-63)
Hole Thru Spindle........................................................ 3.56"
Main Spindle Horsepower........................................... 40 HP
Main Spindle Speed Range........................................ 35-3300 RPM
Sub-Spindle Horsepower............................................ 30 HP
Sub-Spindle Speed Range......................................... 35-4000 RPM
Approximate Machine Dimensions............................. 260" x 96"
Approximate Machine Height..................................... 120"
Approximate Machine Weight..................................... 27,600 Lbs

CONDITION: From a Large Aerospace Plant.  Machine Appears to be in
                      Excellent Condition !
