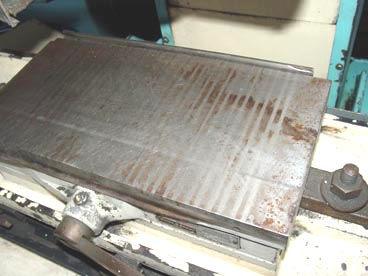

EQUIPPED WITH:  6" x 12" Permanent Magnetic Chuck, Hand Crank Traverses, 1 HP Motorized Grinding Spindle, Work Light.

CATALOGUE SPECIFICATIONS:

Max Table Working Surface............................ 6" x 12"

Magnetic Chuck Working Surface....................... 6" x 12"

Longitudinal Travel (X-Axis)......................... 12"

Cross Travel (Z-Axis)................................ 6-3/4"

Vertical Travel (Y-Axis)............................. 16"

Grinding Spindle Speed............................... 3440 RPM

Grinding Wheel Diameter.............................. 7"

Grinding Wheel Width................................. 5/8"

Grinding Wheel Hole Diameter......................... 1-1/4"

Grinding Wheel Motor................................. 1 HP

Electrics............................................ 440/220/3/60

Approximate Machine Dimensions....................... 48" x 36"

Approximate Machine Height........................... 74"

Approximate Machine Weight........................... 1,600 LBS
