S/N HC40524, New 1988

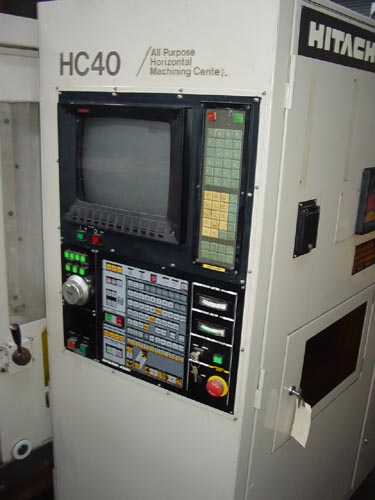

EQUIPPED WITH: Fanuc 11MF CNC Control w/ 14" Color
CRT, RS232 Port, Graphic Function, Part Program Storage and Editing,

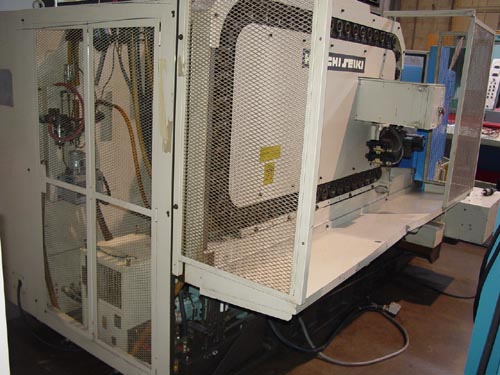

Background Edit, Canned Cycles, Backlash Compensation, Dwell, Dry Run, 50
Station Automatic Tool Changer
Option,

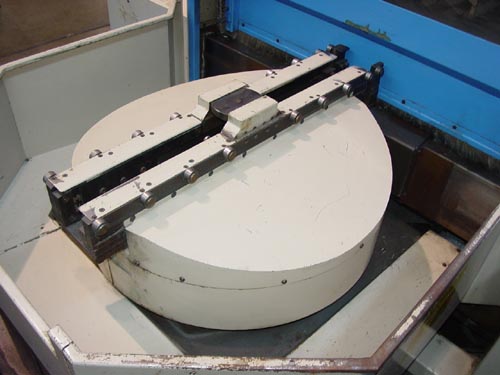

1 Degree Indexing, Work Light, Coolant System.
NOTE: This Machine
does not have Pallets.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)...................
20"
Vertical Travel (Y-Axis).............................
18"
Head Cross Travel (Z-Axis)...........................
18"
Pallet Dimensions....................................
16" x 16"
Maximum Pallet Load.................................. 880
LBS
Number of Index Positions............................ 360
Feed Rate, All Axes..................................
.01-200 IPM
Rapid Traverse, All Axes............................. 590
IPM
Spindle Horsepower................................... 7.5
HP
Spindle Speed Range..................................
60-6000 RPM
Spindle Taper........................................ #40
Number of Tool Positions............................. 50
Approximate Machine Dimensions.......................
154" x 96"
Approximate Machine Height...........................
105"
Approximate Machine Weight...........................
14,300 LBS
CONDITION: This Machine Appears to be in Excellent
Condition! Used Primarily on Plastic!
