Model
350CB x 12, S/N 42288, New 1978
EQUIPPED WITH: Hurco Autobend 5 CNC Back
Gauge, Bed and Ram machined for Removable Angle Brackets, Full Length
Dovetail Slots Across Bed Face & Rear, Cross Slots in Bed Top, Front
Operated Tilt Control, Adjustable Speed Control, Ram Cycle Selector,

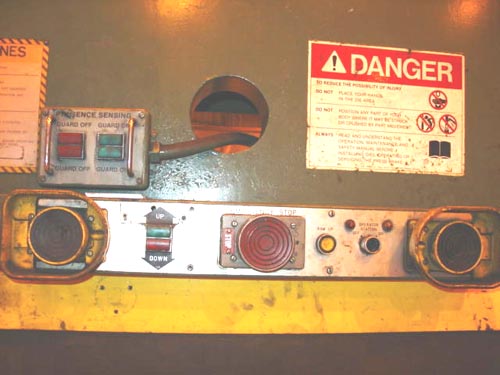

Return Stroke Stop, Sectional Ram Clamps, Lower Die Rail, Dual Palm
Buttons, Electric Foot Switch.
CATALOG SPECIFICATIONS:
Overall Length of Die Surface ........................
14'
Distance Between Housings ............................
12'6"
Tonnage Capacity: High Speed .........................
140 Ton
Low & Medium ....................... 350 Ton
Pressing Speed ....................................... 9
- 65 IPM
Return Speed..........................................
67 IPM
Stroke ...............................................
10"
Open Height ..........................................
18"
Closed Height ........................................
8"
Throat Depth .........................................
10"
Approximate Machine Dimensions........................
168"x65"
Approximate Machine Height............................
133"
Approximate Machine Weight............................
42,000 lbs.
CONDITION: Machine Appears to be in Excellent Condition
!
