Stock Number P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

Supermax YC 1-1/2 VS Vertical Mill - P11676

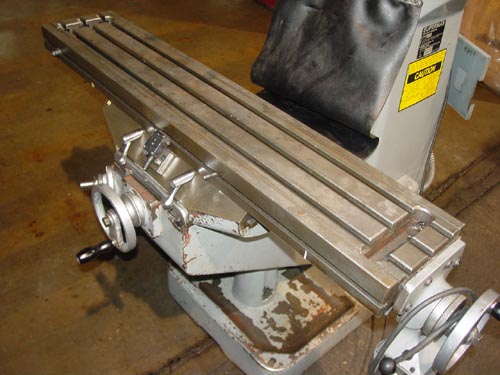

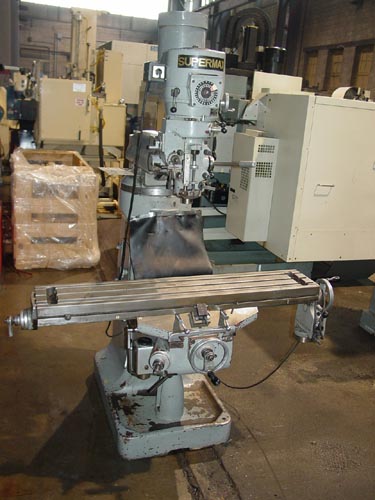

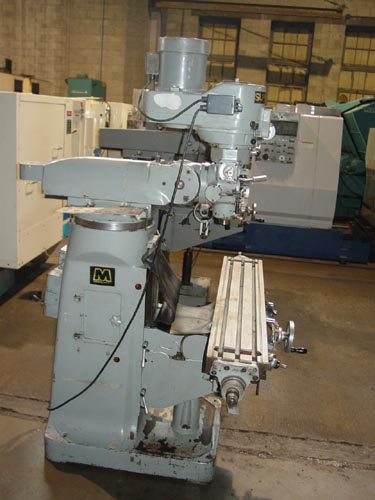

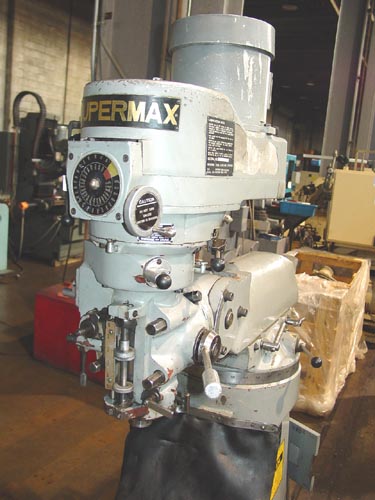

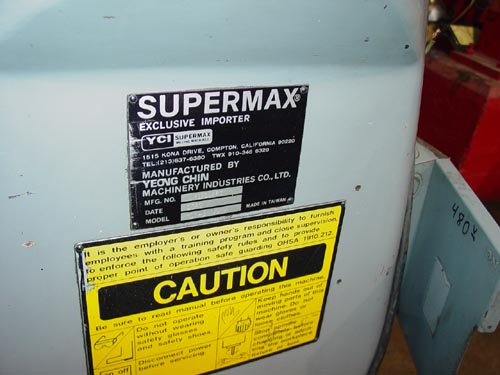

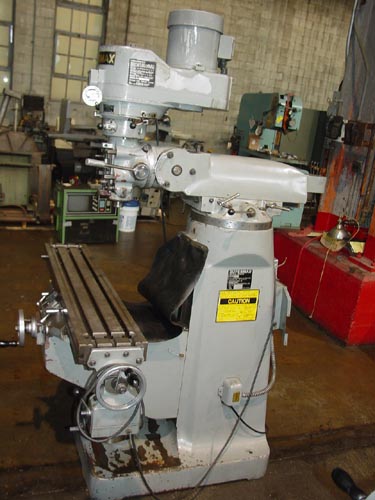

ACTUAL PHOTO

SUPERMAX YC 1-1/2 VS  VERTICAL MILL



EQUIPPED WITH:  Power Feeds on X Axis, 2 HP Variable Speed Head, Swivel Type Overarm.

SPECIFICATIONS:

Table Dimensions (Overall, W x L)......................... 9" x 49"

Table Working Surface, W X L.............................. 9" x 49"

Longitudinal Table Travel (X-Axis)........................ 35"

Cross Saddle Travel (Y-Axis).............................. 12"

Vertical Knee Travel (W-Axis)............................. 16"

Vertical Head Travel (Z-Axis)............................. 5"

Spindle Speeds............................................ 60-4200 RPM

Motor (Spindle)........................................... 2 HP

Electrics................................................. 440/220/3/60

Approximate Machine Dimensions............................ 60" x 72"

Approximate Machine Height................................ 78"

Approximate Machine Weight................................ 2230 lbs.

Condition: Machine Appears to be in Very Good Condition!!
