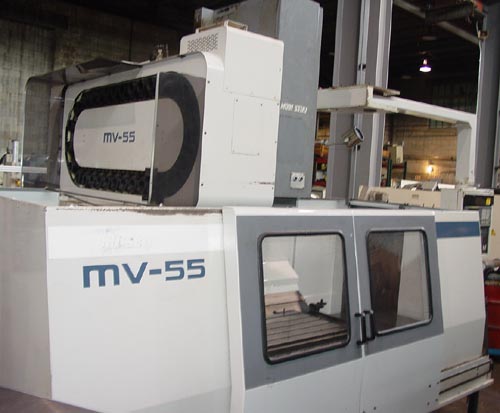

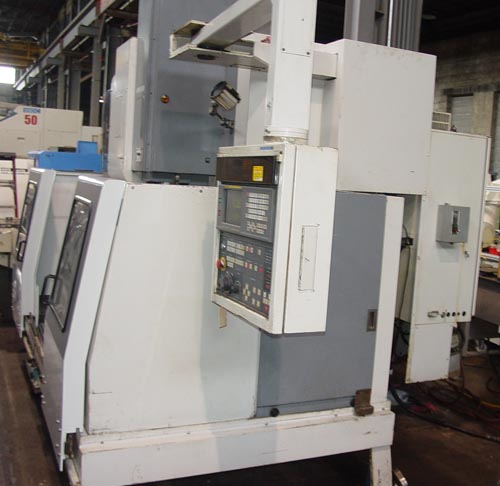

Mori

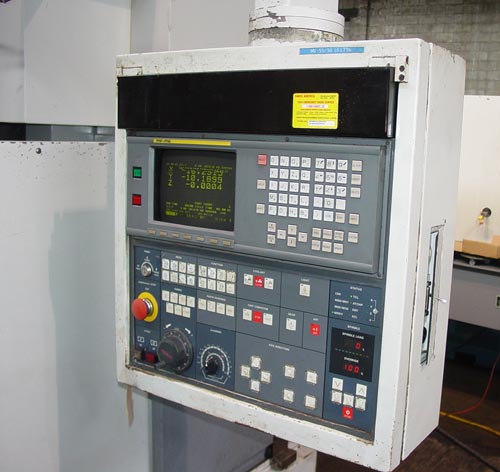

MF-M6 CNC Control w/CRT, 30 Station Automatic Tool Changer, Heavy Duty 50
Taper Spindle, AC Spindle and Axis Drives, Multiple Part Program Storage,
Programmable Offsets, RS232 Data Line, Coolant System.
CATALOGUE SPECIFICATIONS:

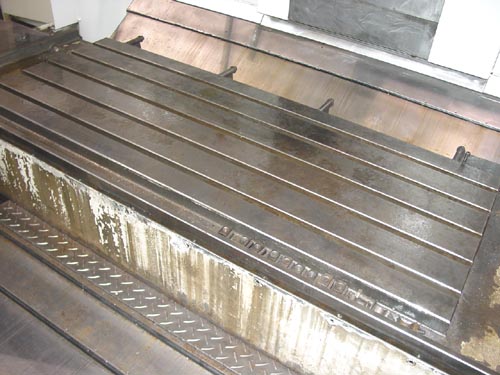

Table Working Surface.................................
55" x 21.6"
Table Load Capacity...................................
3300 LBS
Longitudinal Travel (X-Axis)..........................
41.3"
Cross Travel (Y-Axis).................................
21.7"
Vertical Travel (Z-Axis)..............................
22"
Rapid Traverse Rate................................... 745
Tool Storage Capacity................................. 30
Spindle Horsepower.................................... 15
HP
Spindle Speed Range...................................
40-4000 RPM
Spindle Taper......................................... #50
Electrics.............................................
220/3/60
Approximate Machine Dimensions........................
142" x 197"
Approximate Machine Height............................
124"
Approximate Machine Weight............................
22,000 LBS
