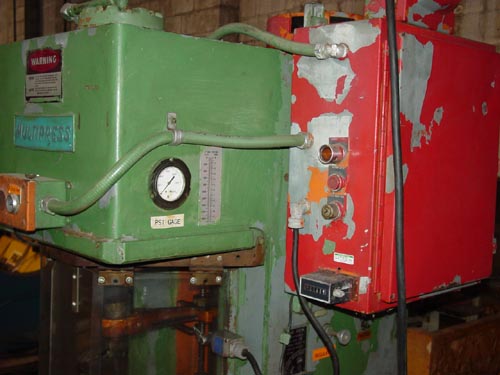

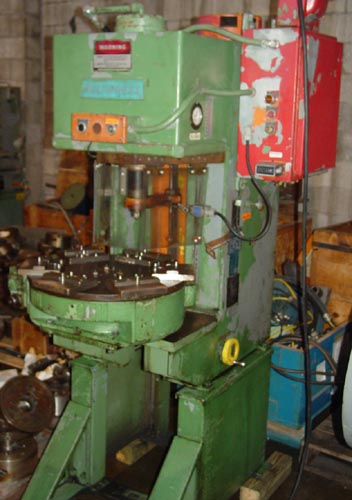

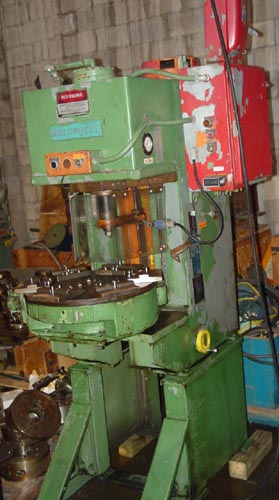

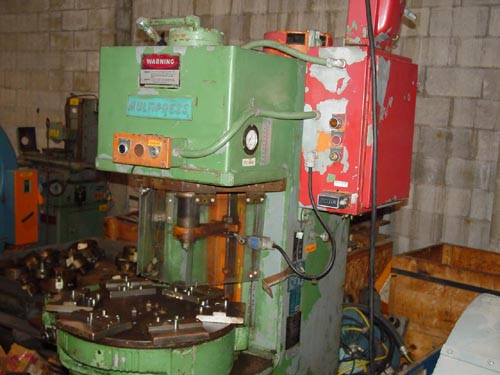

Model WS120MC S/N 24313, New 1974
EQUIPPED WITH: 21"

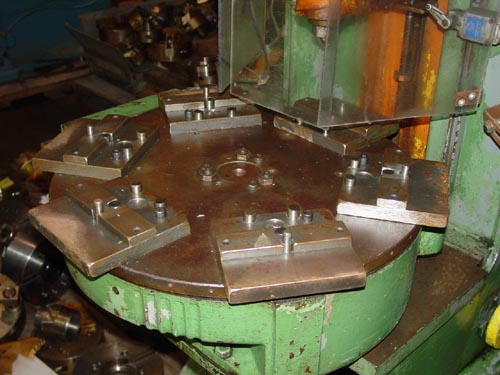

Denison 6 Position Index Table
CATALOGUE SPECIFICATIONS:
Tonnage Capacity..................................... 12
Ton
Stroke Length........................................
12"
Daylight, Maximum....................................
18"
Throat Depth.........................................
8"
Main Cylinder Diameter...............................
4"
Ram Diameter.........................................
2.75"
Bed Area, L-R x F-B..................................
22" x 18"
Maximum Pressure.....................................
1910 PSI
Motor, Horsepower/RPM................................ 10
HP/1800 RPM
Electrical System....................................
460/3/60
Approximate Machine Dimensions.......................
52" x 44"
Approximate Machine Height...........................
91"
Approximate Machine Weight...........................
3200 LBS
NOTE: Machine Appears to be in Very Good Condition!
