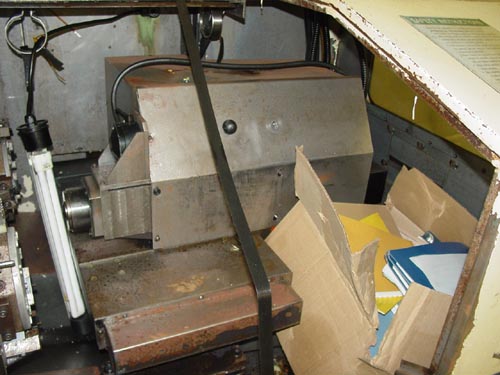

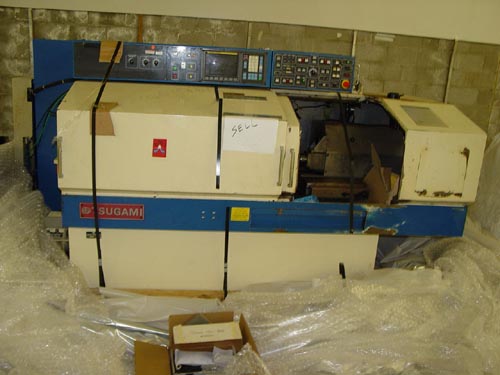

Model NP-32D, New 1992, S/N 9573

EQUIPPED WITH:

Fanuc 0T CNC Control w/ CRT, RS 232 Port, Linear/Circular Interpolation, Thread Cutting, Dwell, Automatic Coordinate System Setting, Single Canned Cycles, X-Axis Diameterical and Radius Designations, Circular Arc Radius Designation, Constant Surface Speed Control, Background Editing, Twin Turrets, Subspindle, Live Tooling.

CATALOGUE SPECIFICATIONS:

Minimum Bar Stock Diameter........................... .314"

Maximum Bar Stock Diameter........................... 1.26"

Maximum Drilling Diameter............................ .787"

Cross Travel Front Turret (X1-Axis).................. 3.46"

Cross Travel Rear Turret (X2-Axis)................... 4.52"

Headstock Travel (Z1-Axis)........................... 8.46"

Subspindle Travel (Z2-Axis).......................... 8.46"

Minimum Indexable Degree (C-Axis).................... 5 Degrees

Spindle Center Height................................ 35.43"

Number of Turrets.................................... 2

Number of Tool Mounting Stations..................... 16

Number of Rotating Tool Mounting Stations............ 16

Rotary Tool Spindle Speed............................ 270 - 5400 RPM

Rapid Traverse X1, X2, Z1, Z2 Axes................... 315 IPM

Subspindle Maximum Chucking Diameter................. 1.26"

Subspindle Speeds.................................... 200 - 3000 RPM

Minimum Indexable Degree Subspindle.................. 15 Degrees

Main Spindle Speeds.................................. 35 - 4500 RPM

Main Spindle Horsepower.............................. 10 HP

Subspindle Horsepower................................ 2 HP

Approximate Machine Dimensions....................... 114" x 65"

Approximate Machine Height........................... 69"

Approximate Machine Weight........................... 6,700 LBS
