Inch/Metric
Conversion, Helical Interpolation, Multiple Part Program Storage, Program

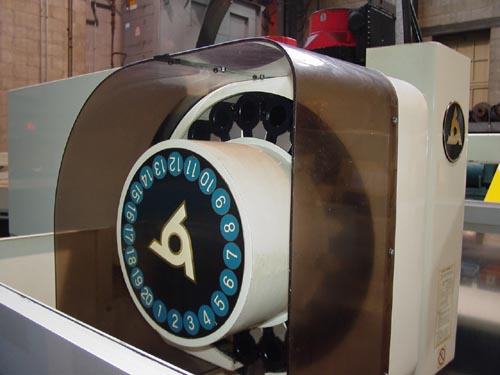

Editing, Self Diagnosis Functions, RS232 Port, Side Mount 20 Station
Automatic Tool Changer, Coolant System.
CATALOGUE SPECIFICATIONS:
Table Working Surface.................................
35.4" x 16.1"
Table Load Capacity...................................
661 LBS
Longitudinal Travel (X-Axis)..........................
23"
Cross Travel (Y-Axis).................................
17"
Vertical Travel (Z-Axis)..............................
18"
Feed Rates (X &
Y-Axes)............................... 0.1 to 393 IPM
Feed Rate (Z-Axis)....................................
0.1 to 393 IPM
Rapid Traverse Rate (X &
Y-Axes)...................... 944 IPM
Rapid Traverse Rate (Z-Axis)..........................
787 IPM
Tool Storage Capacity................................. 20
Spindle Horsepower.................................... 10
HP
Spindle Speeds Range..................................
20-7000 RPM
Spindle Taper.........................................
#40
Approximate Machine Dimensions........................
106" x 100"
Approximate Machine Height............................
114"
Approximate Machine Weight............................
11,000 LBS
