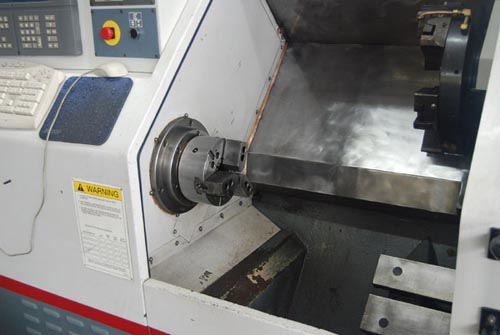

CINCINNATI MILACRON `HAWK 200'
CNC TURNING CENTER
Model
Hawk 200, New 1998
EQUIPPED WITH: Acramatic
2100 PC Based CNC Control with Color CRT, Multiple Part
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over
Bed...................................... 20.87"
Max Swing Over
Carriage................................. 11.81"
Max Tailstock
Position.................................. 26.18"
Standard Chuck
Size..................................... 8.27"
Cross Travel
(X-Axis)................................... 9.65"
Longitudinal Travel
(Z-Axis)............................ 21.26"
Feed Range (Infinitely
Variable)........................ .1-630 IPM
Rapid Traverse Rate
(X-Axis)............................ 630 IPM
Rapid Traverse Rate
(Y-Axis)............................ 1000 IPM
Number of
Turrets....................................... 1
Tool
Positions.......................................... 12 Total
Spindle
Bore............................................ 3.03"
Spindle
Nose............................................ A2-6
Spindle Speed Range (1 RPM
Increments).................. 30-4500 RPM
Spindle
Horsepower...................................... 15 HP
Electrics...............................................
230/460/3/60
Approximate Machine
Dimensions.......................... 58.2" x 38"
Approximate Machine
Height.............................. 63.8"
Approximate Machine
Weight.............................. 10,300 LBS
CONDITION: Machine Appears to be in Excellent
Condition!!
