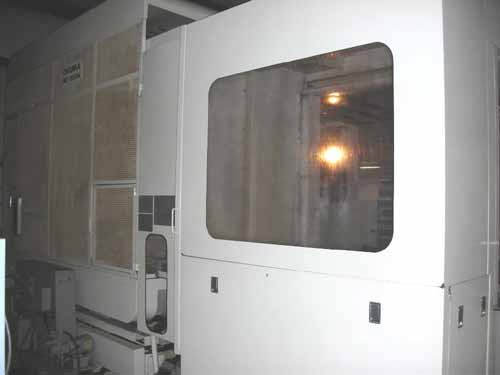

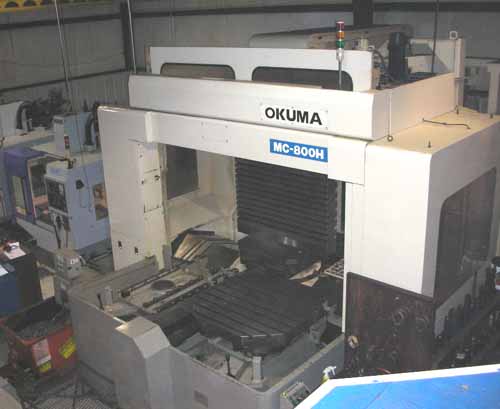

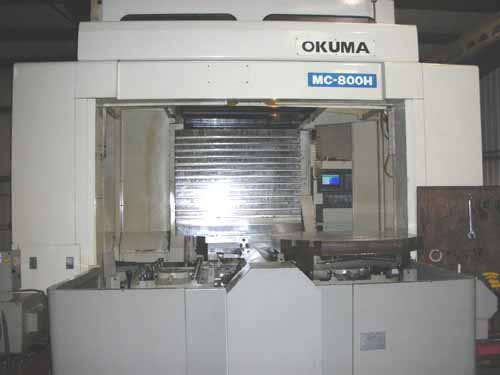

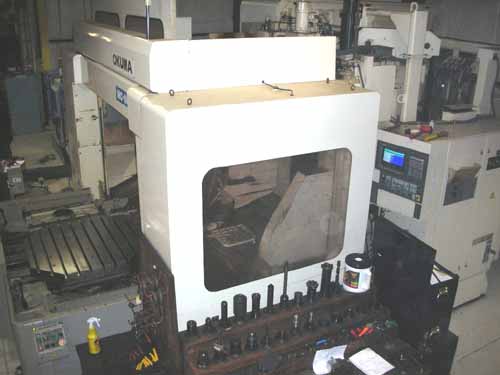

OKUMA MC-800H
HORIZONTAL MACHINING CENTER
Model MC-800H, New 2000

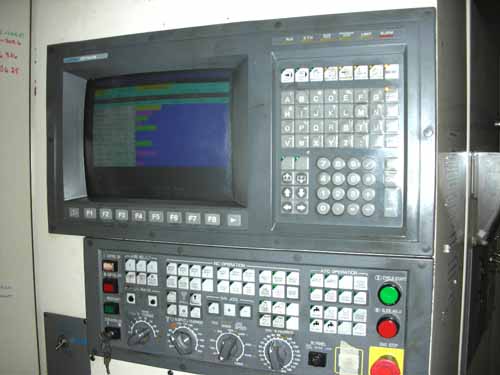

EQUIPPED WITH: Okuma OSP 7000M CNC Control w/ CRT, 120 Station
Automatic Toolchanger ($ 94,000 Option), (4) Spare Pallets ($ 48,000
Option), Lift Up Style Chip Conveyor ($ 32,000 Option), Thru the Spindle
Coolant ($ 15,560 Option), Super Nurbs Type A ($
19,160 Option), Torn Cut Function ($ 11,640 Option), I/O Variable, User
Task II ($ 8,000 Option), (2) 31.5" Pallets
w/ 1 Degree Indexing, Chip and Coolant System.
NOTE: This Machine is Super
Loaded with Options. Too Many to List On This Quote. New Replacement
Price with all Options is Close to $ 1,000,000. This Machine Has Less
Than 6000 Cutting Hours!
CATALOGUE SPECIFICATIONS:
X Axis
Travel...................................... 49.21"
Y Axis
Travel...................................... 39.37"
Z Axis
Travel...................................... 33.46"
B Axis
Travel...................................... 360 Degrees
Spindle Center to
Pallet........................... 1.97" to 41.34"
Spindle Nose to Pallet
Center...................... 9.84" to 43.31"
Number of
Pallets.................................. 2
Size of
Pallets.................................... 31.5"x 31.5"
Load
Capacity...................................... 3520 LBS
Rapid Traverse (X and Y
Axes)...................... 787 IPM
Rapid Traverse (Z
Axis)............................ 709 IPM
Cutting Feed Rates (X,Y,Z).........................
0.01 to 394 IPM
Spindle
Motor...................................... 30 HP
Speed Range (Infinitely
Variable).................. 10 to 4500 RPM
Spindle
Taper...................................... 50
Tool Changer
Capacity.............................. 120
Approximate Machine
Dimensions..................... 164" x 2565"
Approximate Machine
Height......................... 139"
Approximate Machine
Weight......................... 50,600 Lbs.
CONDITION: Machine Has Less
Than 6000 Cutting Hours on it and Appears to be in Excellent Condition!
