Stock Number P11788

Cincinnati 20V120 5 Axis Vertical Machining Center - P11788

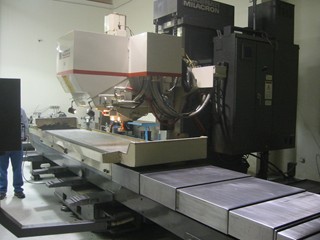

ACTUAL PHOTO

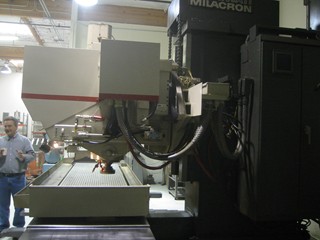

CINCINNATI MILACRON 20V120 5-Axis Vertical Machining Center

Model 20V-120, New 1996

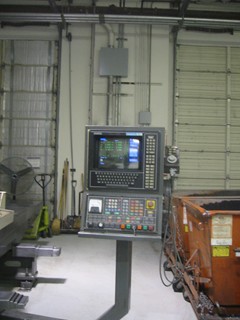

EQUIPPED WITH: Acramatic 950 CNC 5-Axis Simultaneous Contouring Control with Touch Screen Programming, Color Graphics, 5-Axis Cutter Compensation, Tool Management Package, Cutter Load Compensation, Heavy Duty Box Ways, Flood Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface, W x L............................ 30" x 120"

Table Load Capacity..................................... 10,000 LBS

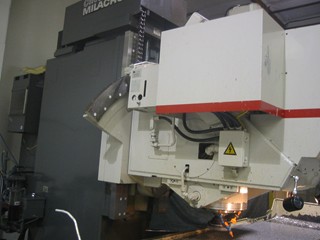

A Axis Cross Plane Spindle Carrier(+/- 25 Deg).......... 50 Degrees

B Axis Longitudinal Plane Spindle Carrier(+/- 25 Deg)... 50 Degrees

X Axis Table Longitudinal Travel........................ 120"

Y Axis Saddle Cross Travel.............................. 30"

Z Axis Spindle Carrier Vertical Travel.................. 24"

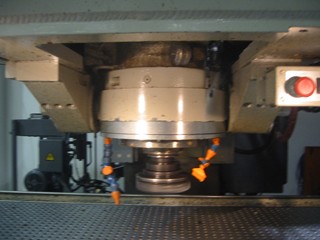

Spindle Taper........................................... #50 CAT

Spindle Speeds, Infinite Range.......................... 36 to 3600 RPM

X & Y Axis Feeds, Range................................. 0 to 300 IPM

A & B Axis Feedrates, Range, Degrees Per Minute......... 0 to 240 DPM

Spindle Motor........................................... 20 HP

Approximate Machine Dimensions.......................... 204" x 264"

Approximate Machine Height.............................. 140"

Approximate Machine Weight.............................. 53,000 LBS

CONDITION: Machine Appears to Be in Excellent Condition !
