Fanuc

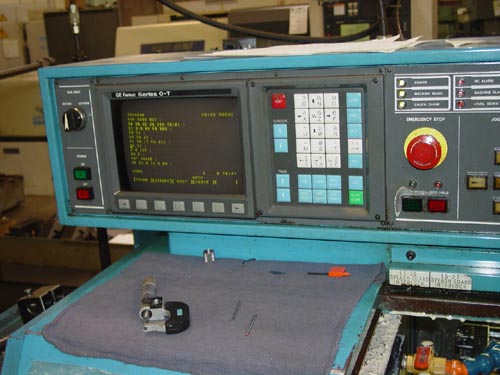

OT-C CNC Control with CRT, RS232 Port for DNC System, Spindle Load

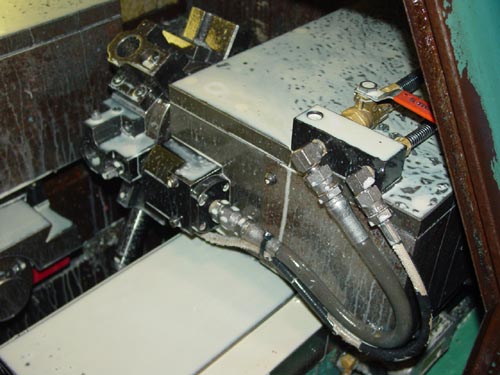

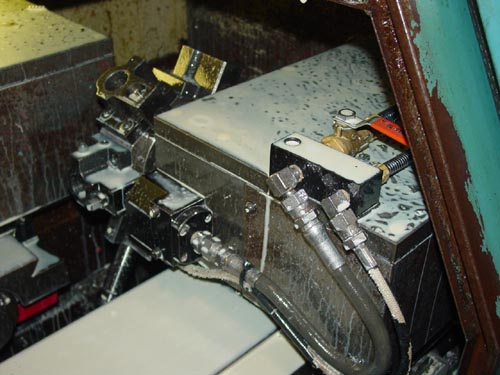

Meter,(2) 6 Station Turrets, Programmable End Working Turret Provides 3

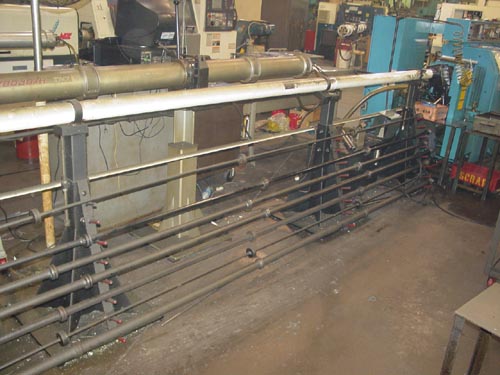

Axis Simultaneous Cutting Capability, CNC Enhancements Barfeeder,

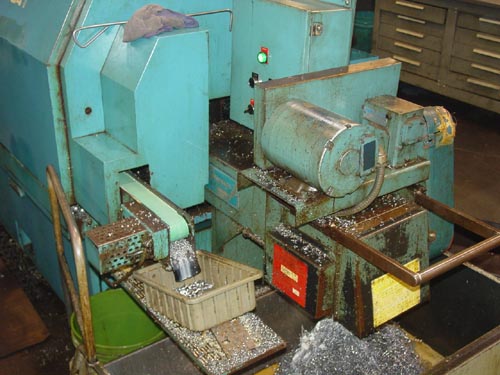

Programmable Part Catcher w/ Parts Conveyor, Heavy Duty Slant Bed
Construction, Chip Conveyor,Coolant System.
CATALOGUE SPECIFICATIONS:
Max Bar
Capacity.......................................... 1-5/16"
Max Swing over the Cross
Slide............................ 10.62"
Max Part
Length........................................... 7-7/8"
Max Turning
Diameter...................................... 4-3/4"
Cross Travel
(X-Axis)..................................... 3-7/8"
Longitudinal Travel
(Z-Axis).............................. 11-3/8"
Number of
Turrets......................................... 2
Turret
Positions.......................................... 6 Each
Spindle Speed
Range....................................... 170-5000 RPM
Spindle Drive
Motor....................................... 10 HP
Approximate Machine Dimension(w/o
Barfeeder).............. 59" x 100"
Approximate Machine
Height................................ 67"
Approximate Machine
Weight................................ 6,200 LBS
CONDITION: Machine Appears to be in Excellent Condition
!
