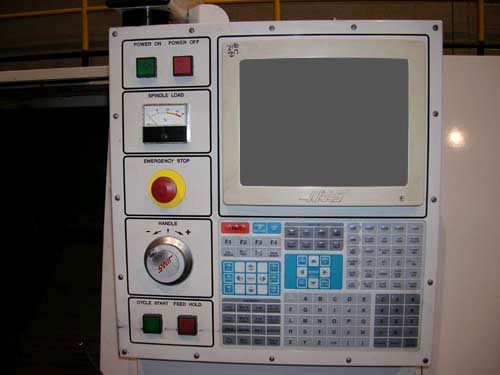

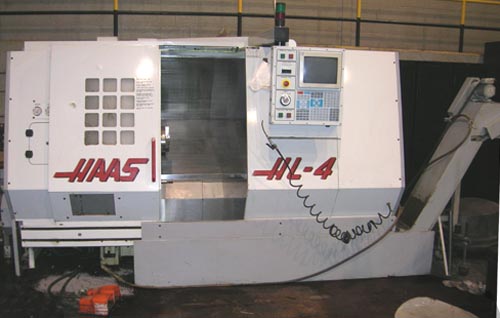

EQUIPPED WITH: Haas CNC Control with CRT, Dual 32-Bit

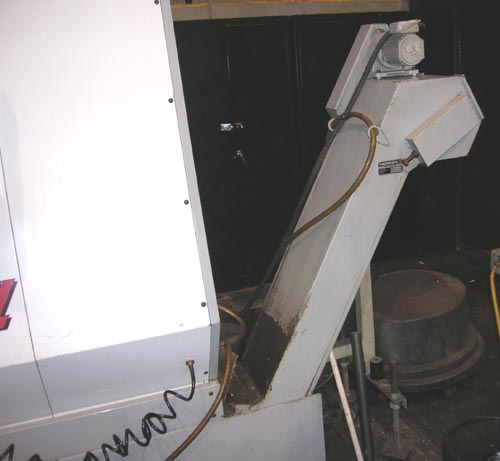

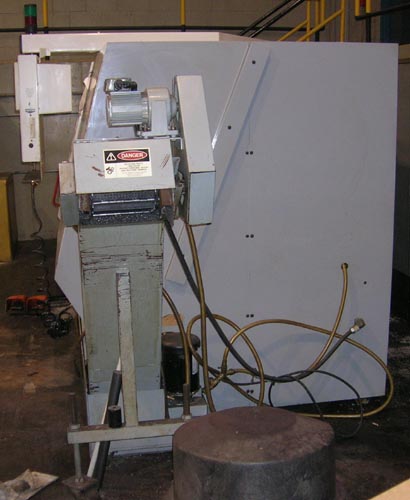

Processors, Programmable Tailstock, 10" 3-Jaw Power Chuck, Chip
Conveyor, and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
24"
Max Swing Over Carriage.................................
9.5"
Max Tailstock Position..................................
39"
Max Machinable Center Distance..........................
34"
Standard Chuck Size.....................................
10"
Cross Travel (X-Axis)...................................
11.3"
Longitudinal Travel (Z-Axis)............................
34"
Rapid Traverse Rates.................................... 710
IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12
Total
Spindle Bore............................................
3"
Spindle Nose............................................
A2-6
Spindle Speed Range (Maximum)...........................
3400 RPM
Spindle Horsepower...................................... 30
HP
Approximate Machine Dimensions..........................
123" x 73"
Approximate Machine Height..............................
82"
Approximate Machine Weight..............................
14,000 LBS
CONDITION: Machine Has Very Low Hours and Appears to be in
Excellent
