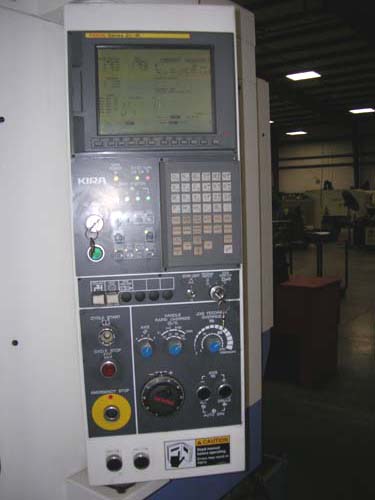

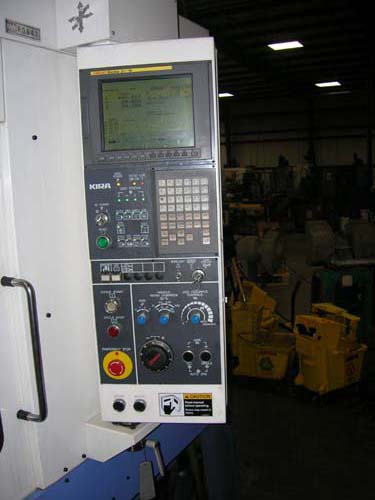

EQUIPPED WITH: Fanuc 21I CNC w/ CRT, (2) 23"
x 13.8" Pallets Rigid Tapping, RS232 Port, Canned Cycles,
Inch/Metric Conversion, Linear Interpolation, Automatic Lubrication
System, Cutter Compensation, Spindle Orientation, 14 Station Automatic

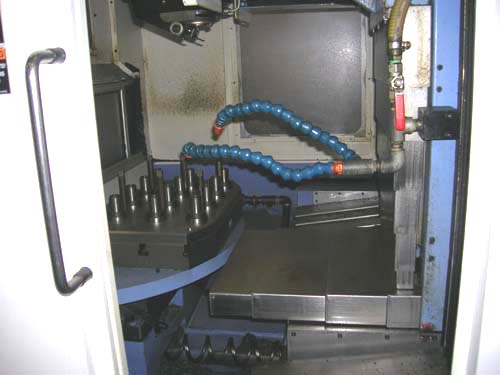

Tool Changer, Full Coolant Enclosure, Auto Door, Robot Interface, Chip
Conveyor, Coolant System
CATALOGUE SPECIFICATIONS:

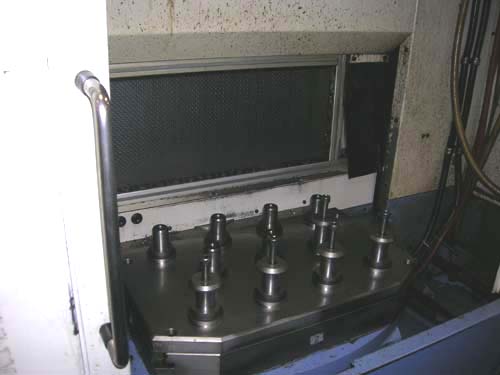

Pallet Dimensions.....................................
23.6" x 13.8"
Pallet Change Time.................................... 4
Seconds
Pallet Load Capacity (Each Pallet)....................
220 Lbs
Rotation..............................................
180 Degree
Longitudinal Travel (X-Axis)..........................
19.7"
Cross Travel (Y-Axis).................................
13.8"
Vertical Travel (Z-Axis)..............................
15.8"
Spindle Nose to Table Top.............................
5.9"-21.7"
Cutting Center Line to Column Surface.................
16.9"
Rapid Traverse Rate (X & Y
Axes)...................... 1889 IPM
Rapid Traverse Rate (Z-Axis)..........................
1417 IPM
Feed Rate (All Axes)..................................
394 IPM
Tool Storage Capacity.................................
14
Spindle Horsepower....................................
7.5 HP
Maximum Spindle Speed Range...........................
8000 RPM
Spindle Taper.........................................
CAT 40
Approximate Machine Dimensions........................
130" x 138"
Approximate Machine Height............................
122"
Approximate Machine Weight............................
6,600 LBS

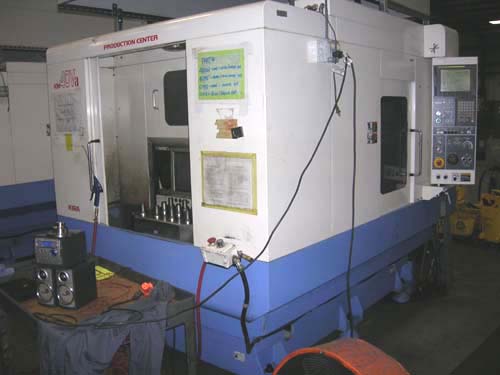

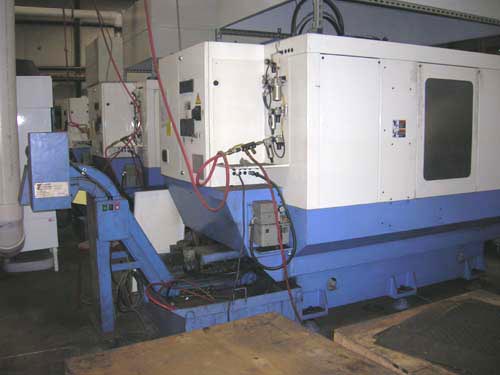

CONDITION: (4) Identical Machines Available! All (4)
Were Purchased for a Contract that was Cancelled Shortly After They Were
Purchased! Machine all Have Low Hours and Appear to be in Excellent
Condition!
