Stock Number P11801

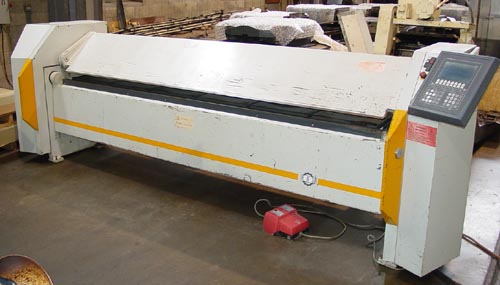

RAS Turbobend Metal Folding System - P11801

ACTUAL PHOTOS

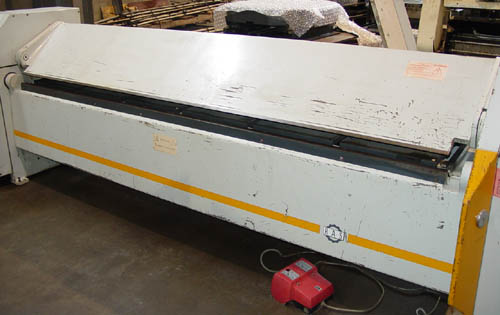

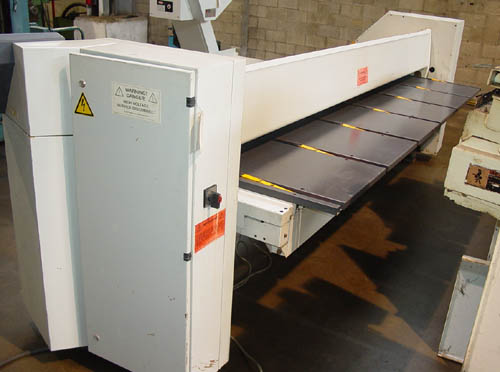

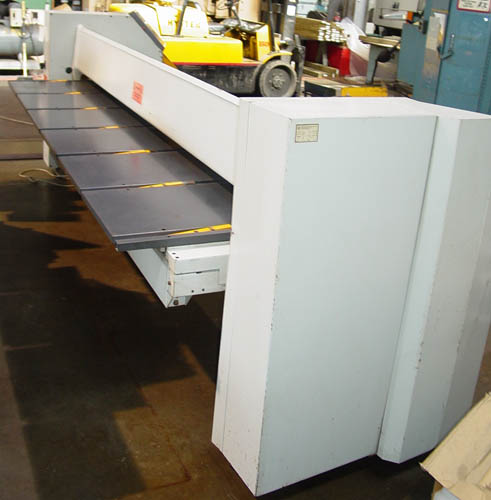

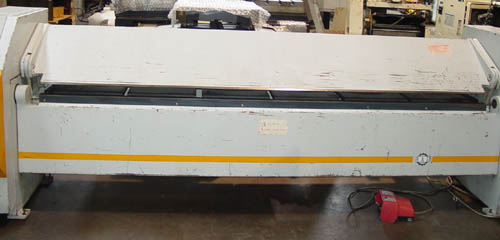

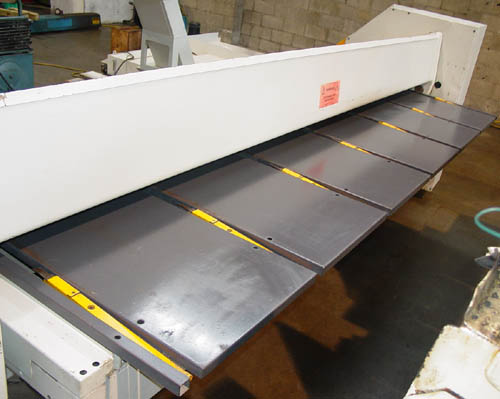

16 GAUGE X 124" RAS TURBOBEND CNC METAL FOLDING SYSTEM

Model RAS 61.31, S/N 18/5, New 1996

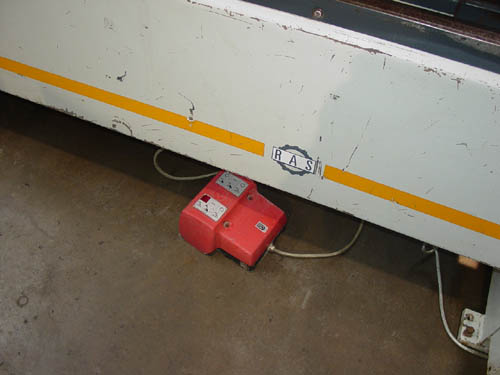

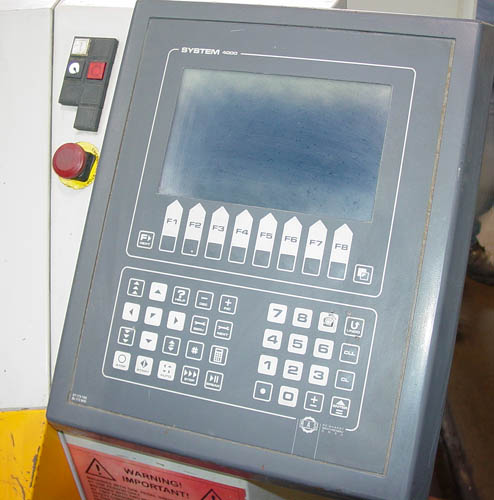

EQUIPPED WITH: RAS CNC SYSTEM 4000 for Backgauge, Folding Beam, Upper Beam, and Virtual CNC Axis for the Folding Beam Adjustment, All Welded Steel Construction, 3-1/2" Floopy Disc Drive, Foot Pedal.

NOTE: The RAS Turbobend is the Fastest and Most Accurate Metal Folding System for the Roofing, Architectural, and Metal Contruction Industries. The RAS Turbobend is a Very High Quality German Built Machine w/ an Extraordinarily User Friendly Control! New Replacement Price is $ 155,000.

CATALOG SPECIFICATIONS:

Working Width......................................... 124"

Maximum Sheet Thickness............................... 16 Gauge

Minimum Inner Bend Radius............................. 1.5 x Thickness

Minimum Flange Height Inside.......................... 6 x Thickness

Maximum Upstroke...................................... 4.72"

Maximum Floding Beam Adjustment....................... .19"

Backgauge Depth....................................... .31" - 39.4"

Working Height........................................ 33"

Downstroke Speed...................................... 2.5"/second

Maximum Folding Beam Speed............................ 80 Deg./second

Backgauge Speed (.31"-30.4").......................... 1.9 Seconds

Electrical System .................................... 220/3/60

Approximate Machine Dimensions........................ 170" x 56"

Approximate Machine Height............................ 55"

Approximate Machine Weight............................ 5,500 Lbs

CONDITION: Machine Appears to be in Excellent Condition!!
