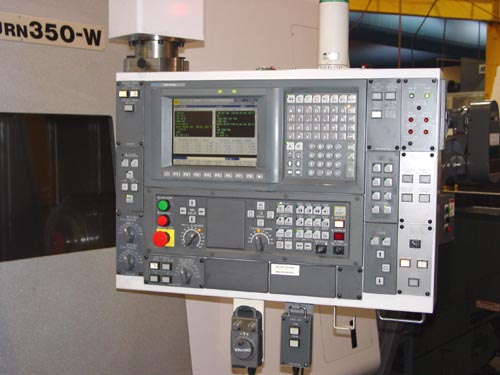

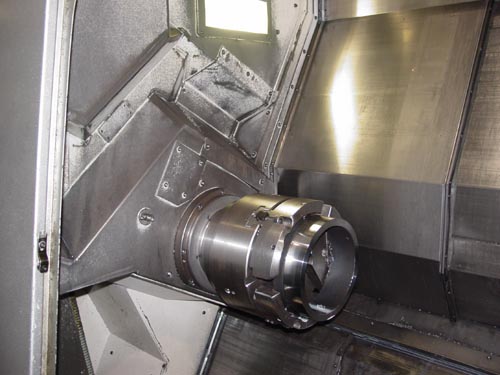

EQUIPPED WITH:  OSP E100L CNC Control, B-Axis (1 Degree Indexing), Live Tooling, Y-Axis, C-Axis, 12" SMW/Autoblok Chuck, 8" Chuck Subspindle, Upper Turret w/ Capto C6 Taper, 44 Station Automatic Toolchanger, Chuck Air Blow, High Pressure Coolant, Load Monitor, Thru M-Tool Coolant, 12 Station VDI Lower Turret, RS-232 Port, Chip Conveyor, Coolant System.

NOTE: New Replacement Price for this Machine w/ Options is over  $660,000.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed ..................................... 21.65"

Max Turning Diameter.................................... 20.87"

Toolchanger Capacity.................................... 44

Bar Capacity............................................ 2.75"

Main Chuck Size......................................... 12"

Main Spindle Horsepower................................. 30 HP

Sub Spindle Chuck Size.................................. 8"

Sub Spindle Horsepower.................................. 15 HP

Rotary Tooling Horsepower............................... 7.5 HP

Rotary Tooling Maximum RPM.............................. 6000 RPM

Cross Travel (X-Axis)................................... 19.88"

Longitudinal Travel (Z-Axis)............................ 65.75"

Y-Axis Travel Upper Slide Only.......................... 7.48"

Lower Turret Cross Travel (X2-Axis)..................... 8.27"

Lower Turret Longitudinal Travel (Z2-Axis).............. 65.16"

Rapid Traverse Rate (X-Axis & X2-Axis).................. 1161 IPM

Rapid Traverse Rate (Z-Axis & Z2-Axis).................. 1575 IPM

Lower Turret Tool Positions............................. 12

Approximate Machine Dimensions.......................... 180" x 115"

Approximate Machine Height.............................. 116"

Approximate Machine Weight.............................. 32,000 LBS

CONDITION: Machine Has Only 4900 Cutting Hours and Appears to be Excellent Condition !
