Model

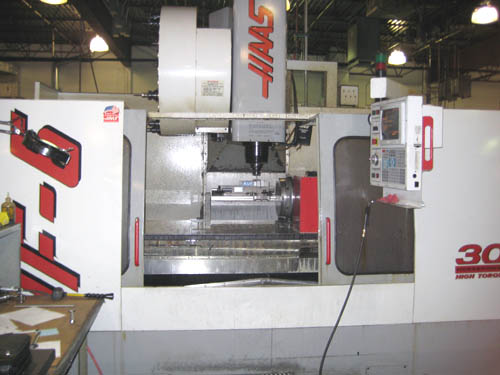

VF-6/50, S/N 17386, New 1999

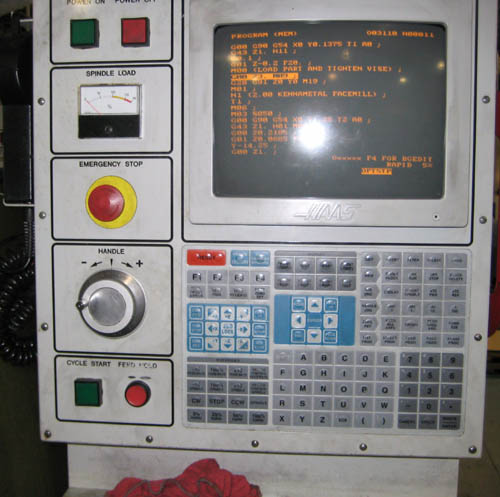

EQUIPPED WITH: HAAS 32-Bit CNC Control w/CRT, Thru
the Spindle Coolant, Quick Code, 4th Axis Drive and Wiring for Brush
Style Rotary Table, User Definable Macros, Spindle Orientation, Floppy
Disc Drive, Remote Jog Handle, Coordinate Rotation and Scaling, Heavy
Duty 30 HP Cat-50 Spindle, 20 Station Automatic Tool Changer, Metal Way
Covers, Work Light, Chip Auger, Coolant System.
NOTE: New Replacement Price with Options is in excess of
$ 151,000.
CATALOGUE SPECIFICATIONS:
Table Working Surface.............................
64" x 28"
Table Load Capacity............................... 4,000
LBS
Longitudinal Travel (X-Axis)......................
64"
Cross Travel (Y-Axis).............................
32"
Vertical Travel (Z-Axis)..........................
30"
Maximum Clearance Table Top to Spindle Nose.......
34"
Feed Rates, All Axes.............................. 0 to
300 IPM
Rapid Traverse Rate, X-Axis....................... 540
IPM
Rapid Traverse Rate, Y and Z Axes................. 600
IPM
Tool Storage Capacity............................. 20
Spindle Horsepower................................ 30 HP
Spindle Speeds Range.............................. 0-5000 RPM
Spindle Taper..................................... No.
50 CAT (V-Flange)
Approximate Machine Dimensions....................
123" x 156"
Approximate Machine Height........................
128.5"
Approximate Machine Weight........................
21,000 LBS
CONDITION: This Machine Appears to be in Excellent
Condition!
