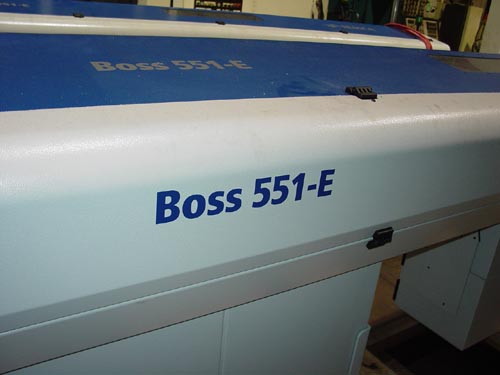

Model Boss
551-E, New 2007

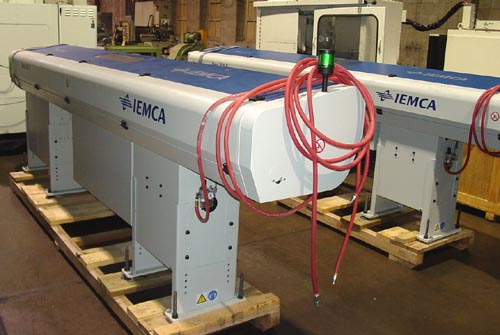

MACHINE DESCRIPTION: The Iemca Boss 551-E is
Designed to Deliver a Capacity to Withstand the Highest Levels of Strain
During Machining Processes, Not to Mention a Remarkable Degree of
Operating Flexibility. Bar Changeover From One Diameter to Another Has
Never Been Simpler or Quicker, Making the Boss the Ideal Partner for
Lathes that Frequently Alternate Machining Types During the Same Day.
NOTE: Replacement Cost New is Over $ 36,000.

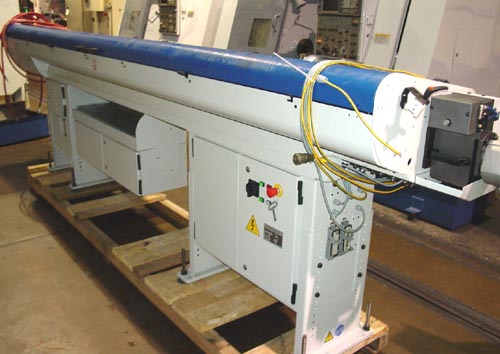

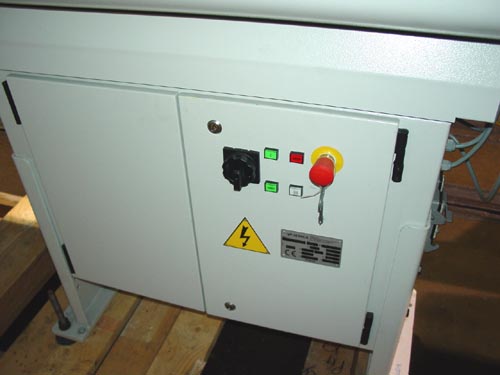

EQUIPPED WITH: Pendant Control, Bar Magazine, Fully
Automatic Operation.
CATALOGUE SPECIFICATIONS:
Round Bar Diameter Capacity ......................
3/16" to 2"
Hex Bar Capacity..................................
3/16" to 1-9/16"
Magazine Capacity.................................
11"
Remnant Length....................................
15.7"
Maximum Feed Length For Bars......................
145.66"
Feed Speed (Adjustable)........................... 27 IPM
Return Speed (Adjustable)......................... 37 IPM
Electrics.........................................
230/3/60
Approximate Machine Dimensions....................
48" x 164"
Approximate Machine Height........................
60"
Approximate Machine Weight........................ 2,500
LBS
CONDITION: Machine Appears to be in Same as New Condition!
