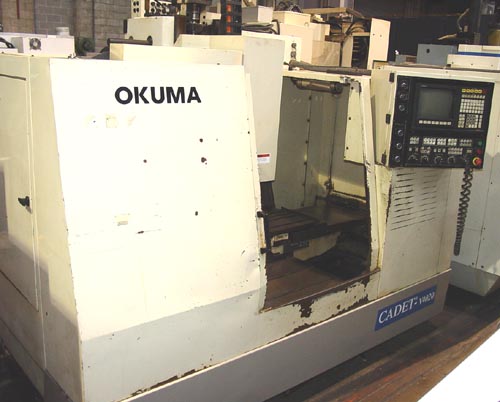

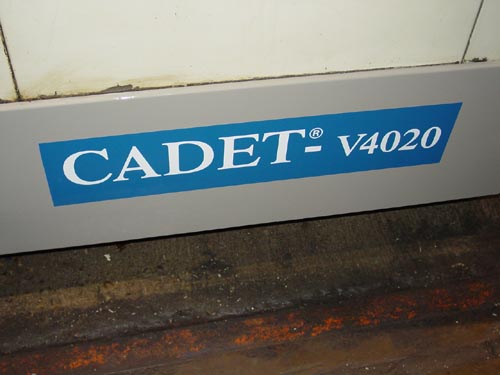

Model Cadet V-4020, New 1996
EQUIPPED WITH:

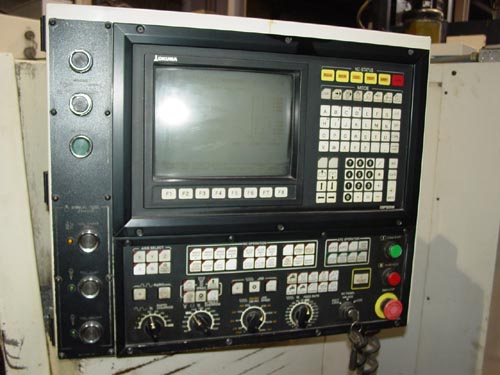

OSP 5020M CNC Control, RS 232 Port, 20 Position Automatic
Tool Changer, Full Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:

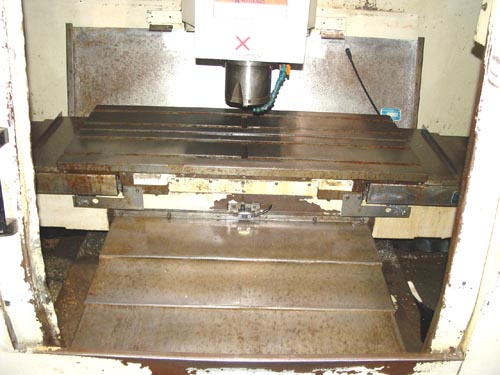

Table Working Surface.............................
47.25" x 20.0"
Table Load Capacity............................... 700 LBS
Longitudinal Travel (X-Axis)...................... 40"
Cross Travel (Y-Axis)............................. 20"
Vertical Travel (Z-Axis).......................... 20"
Rapid Traverse Rate(All Axes)..................... 591 IPM
Spindle Face to Table Surface.....................
7.87" - 27.87"
Tool Storage Capacity............................. 20
Maximum Tool Diameter.............................
3.54"
Maximum Tool Length...............................
11.8"
Maximum Tool Weight............................... 17 Lbs.
Spindle Speeds Range.............................. 8-8000
RPM
Spindle Taper..................................... # 40
Approximate Machine Dimensions.................... 110"
x 79"
Approximate Machine Height........................ 114"
Approximate Machine Weight........................ 8800 Lbs.
CONDITION: Machine Appears to be in Excellent Condition!
