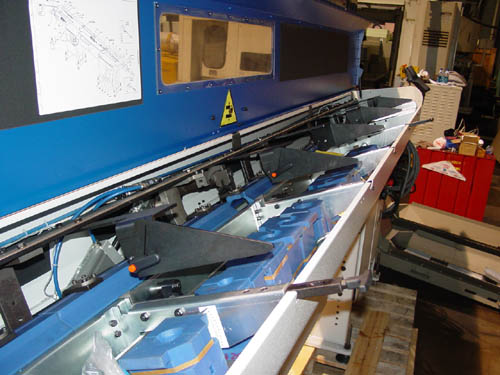

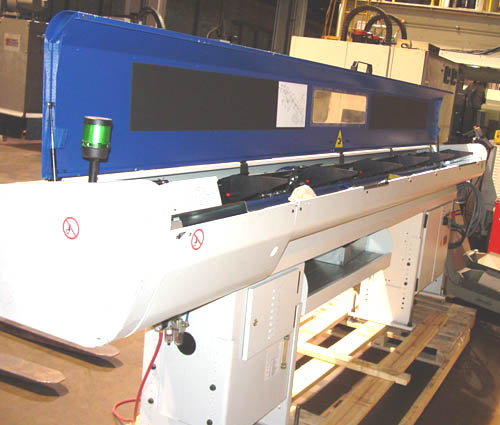

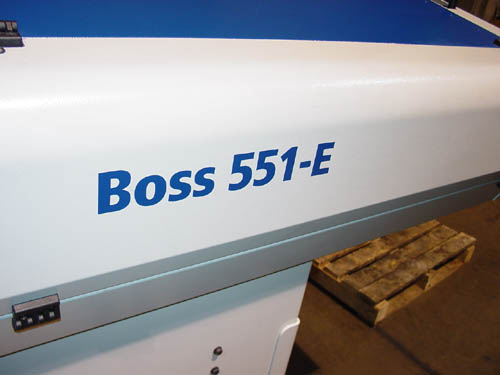

MACHINE DESCRIPTION:  The Iemca Boss 551-E is Designed to Deliver a Capacity to Withstand the Highest Levels of Strain During Machining Processes, Not to Mention a Remarkable Degree of Operating Flexibility. Bar Changeover From One Diameter to Another Has Never Been Simpler or Quicker, Making the Boss the Ideal Partner for Lathes that Frequently Alternate Machining Types During the Same Day.

NOTE: Replacement Cost New is Over $ 36,000.

EQUIPPED WITH: Pendant Control, Bar Magazine, Fully Automatic Operation.

CATALOGUE SPECIFICATIONS:

Round Bar Diameter Capacity ...................... 3/16" to 2"

Hex Bar Capacity.................................. 3/16" to 1-9/16"

Magazine Capacity................................. 11"

Remnant Length.................................... 15.7"

Maximum Feed Length For Bars...................... 145.66"

Feed Speed (Adjustable)........................... 27 IPM

Return Speed (Adjustable)......................... 37 IPM

Electrics......................................... 230/3/60

Approximate Machine Dimensions.................... 48" x 164"

Approximate Machine Height........................ 60"

Approximate Machine Weight........................ 2,500 LBS
