The

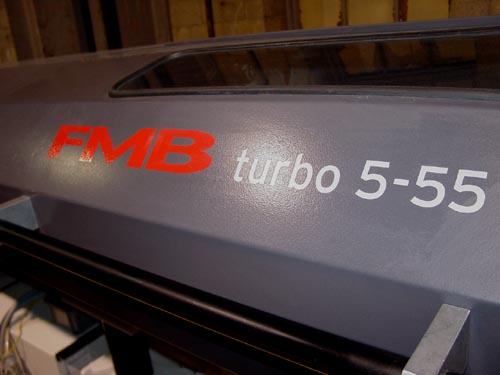

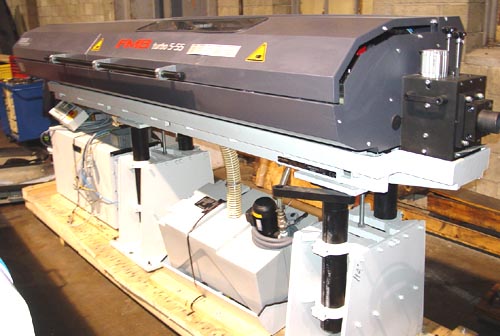

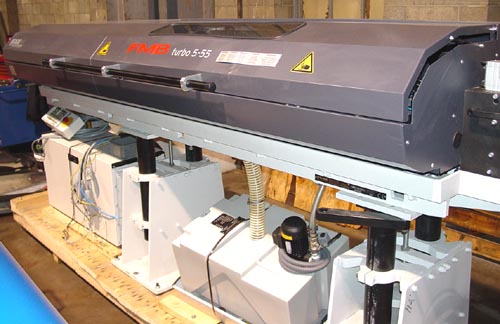

FMB Turbo 5-55 is an Automatic Bar Loading Magazine Feeder for Processing
Bars in the Diameter Ranges of .196" to 2.16" and Length up to

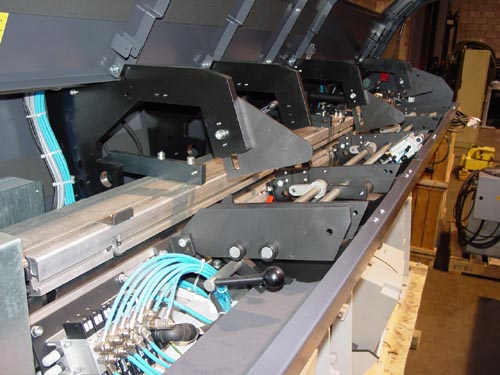

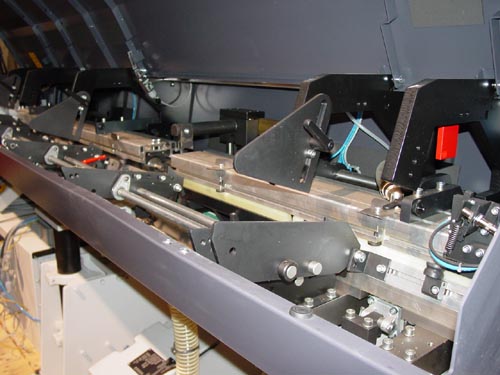

7'3" on CNC Lathes. Quick change Polyurthane Guide Channels Allow for
Quiet Operation at High RPM While Feeding Round, Square, or Hex Bar Stock.
NOTE: Replacement Cost New is $ 43,000.
EQUIPPED WITH:
Pendant Control, (11) Clamping Sleeves, Electrical Prints.
CATALOGUE SPECIFICATIONS:
Round Bar Diameter Capacity ......................
3/16" to 2-1/8"
Magazine Capacity................................. 11"
Remnant Length....................................
22.8"
Maximum Feed Length For Bars......................
86.6"
Infeed Rated (Adjustable)......................... 0-1653
IPM
Forward Feed Rate (Adjustable).................... 0-2362
IPM
Return Feed Rate.................................. 2362 IPM
Electrics......................................... 230/3/60
Approximate Machine Dimensions.................... 48"
x 138"
Approximate Machine Height........................ 60"
Approximate Machine Weight........................ 6,160 LBS
CONDITION: Machine Appears to be in Excellent Condition!
