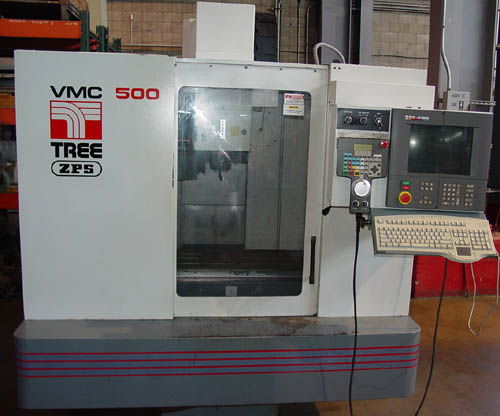

Tree

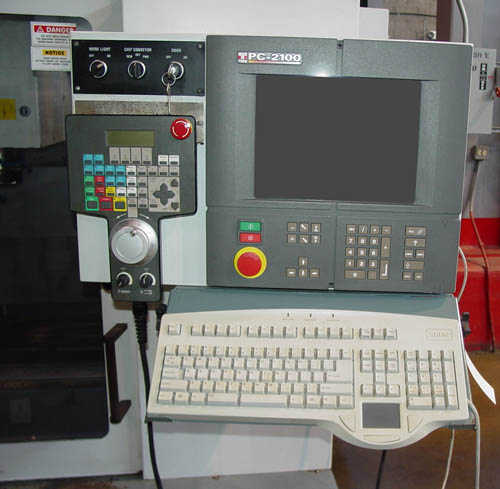

(Siemens) PC-2100 CNC Control w/ CRT (P.C. Based), 220 Station Automatic
Tool Changer, Full Coolant Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:
X Travel (Longitudinal)...............................
19.69"
Y Travel (Cross)......................................
19.69"
Z Travel (Vertical)...................................
19.69"
Table Working Surface.................................
31.5"x19.69"
Table Work Load Capacity.............................. 660
LBS
Spindle Horsepower.................................... 10 HP
Spindle Speeds........................................
40-8000 RPM
Spindle Taper......................................... #40
CAT
Feed Rates, X & Y.....................................
0.1 to 197 IPM
Feed Rate, Z.......................................... 0.1
to 197 IPM
Rapid Traverse X & Y..................................
630 IPM
Rapid Traverse Z...................................... 630
IPM
Tool Storage Capacity................................. 20
Electrics.............................................
230/3/60
Approximate Dimensions................................
93"x 89"
Approximate Height....................................
94"
Approximate Weight.................................... 8,000
LBS
