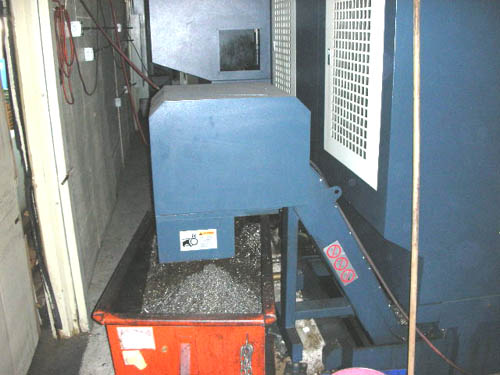

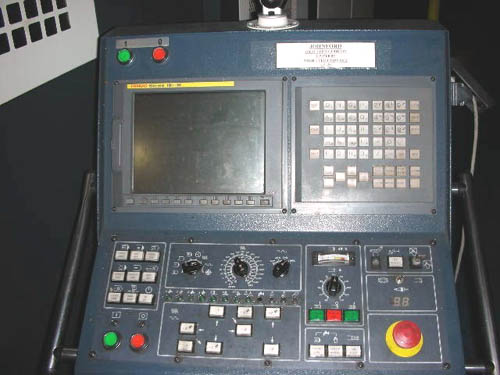

EQUIPPED WITH: Fanuc 18iMB CNC, Spindle Chiller, High Pressure
Coolant Thru the Spindle, Lift up Chip Conveyor, Chip Auger, HPCC &
Data Server
NOTE: The HPCC is Fanuc's High Precision Contour Cutting Which is the
High Speed Machining Look Ahead Feature. You Can Change the Setting
Based on Whether You Want Speed or Accuracy and Adjust the Tolerance you
Want to Maintain on Contoured Surfaces. The Data Server Will Allow you
to Store Very Large Programs on the Control so You Do Not Have to Drip
Feed Using DNC. This Eliminates the Need for External Program Storage
and Allows You to Feed the Data Equally as Fast as the Machine is
Capable of Cutting.
CATALOGUE SPECIFICATIONS:
Table Load Capacity................................... 22,000 Lbs.
Longitudinal Travel (X-Axis).......................... 83"
Cross Travel (Y-Axis)................................. 70"
Vertical Travel (Z-Axis).............................. 42"
Rapid Traverse Rate (X & Y-Axes)...................... 472 IPM
Tool Storage Capacity................................. 24
Spindle Horsepower (2-Speed Gearbox).................. 15 HP
Maximum Spindle Speed................................. 10000 RPM
Spindle Taper......................................... #40 CAT
Approximate Machine Weight............................ 66,000 LBS
CONDITION: Machine Has Only 505 Total Cutting Hours and Appears to be
