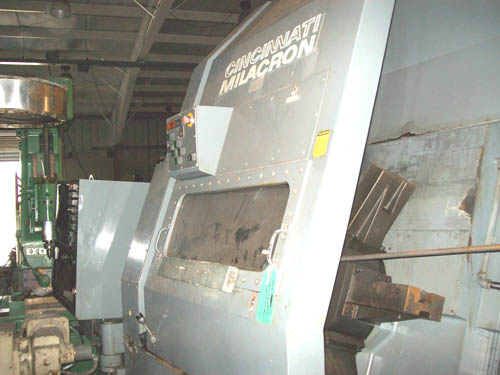

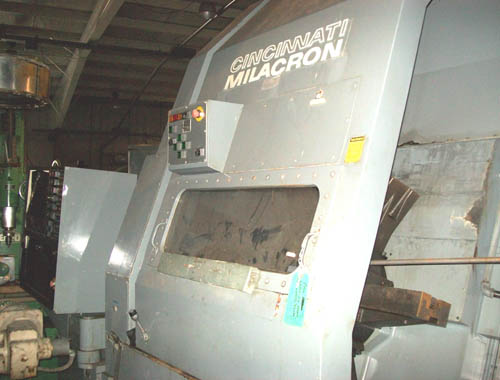

CINCINNATI MILACRON 32CH HEAVY DUTY
CNC CHUCKING CENTER
Model: ME, New: 1976/89 Stock #
P11867
EQUIPPED WITH: Acramatic 850 CNC Control, 30"

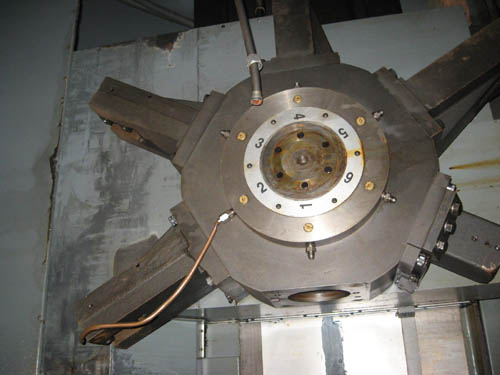

Hydraulic Chuck, 6 Station ID/OD Tool Turret, Oil Cooler, Coolant
System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
33"
Max Swing Over Carriage.................................
30"
Cross Travel (X-Axis)...................................
18"
Longitudinal Travel (Z-Axis)............................
42.50"
Number of Tool Positions (1 turret @ 6).................
6
Feed Range (Infinitely Variable)........................
.1-200 IPM
Rapid Traverse Rate.....................................
300 IPM
Spindle Bore............................................
6.125"
Spindle Nose............................................
A1-15
Spindle Speed Range.....................................
9 to 900 RPM
Spindle Horsepower......................................
50 HP
Approximate Machine Weight..............................
30,000 LBS
