System,
and Chip Conveyor.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
21.65"
Maximum Swing over Cross-Slide..........................
15.75"
Maximum Turning Diameter................................
10.63"
Maximum Turning Length..................................
19.68"

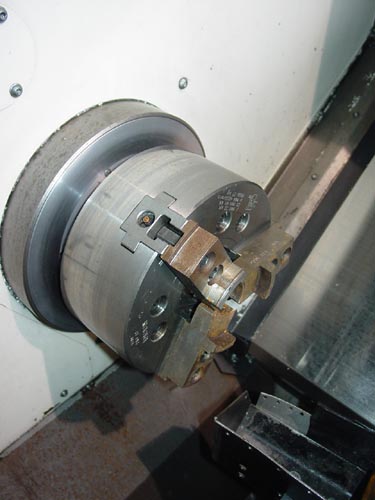

Standard Chuck Size.....................................
8"
Cross Travel (X-Axis)...................................
7.28"
Longitudinal Travel (Z-Axis)............................
20.47"
Feed Range (Infinitely Variable)........................
.1-400 IPM
Rapid Traverse Rate (X-Axis)............................
590 IPM
Rapid Traverse Rate (Y-Axis)............................
787 IPM
Number of Turrets.......................................
1
Tool Positions..........................................
12 Total
Spindle Bore............................................
2.44"
Bar Capacity............................................
2.04"
Spindle Nose............................................
A2-6
Spindle Speed Range (1 RPM Increments)..................
75-4200 RPM
Spindle Horsepower......................................
12 HP
Approximate Machine Dimensions..........................
104" x 73"
Approximate Machine Height..............................
69"
Approximate Machine Weight..............................
9,670 LBS
CONDITION: Machine Has Only 4289 Cutting Hours on it and
