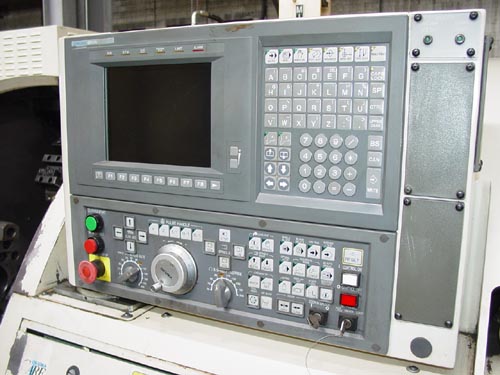

OSP
U10L CNC Control, One Touch IGF, Animation, Lap 4, User Task 2, MacMan,

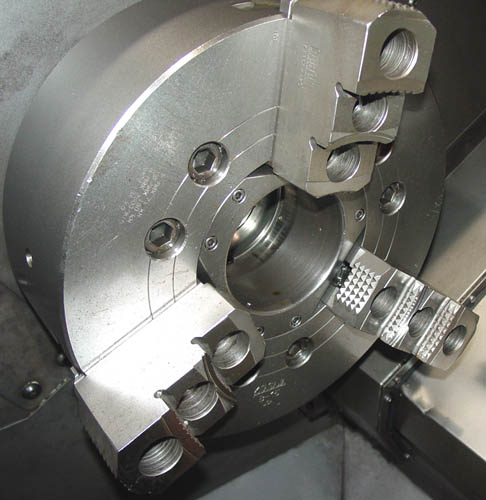

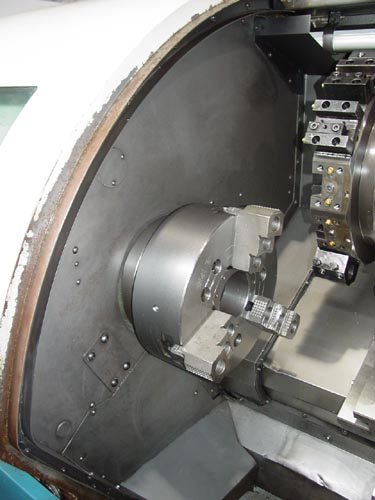

RS-232 Port, Floppy Disk Drive, 15" 3-Jaw Kitagawa Hydraulic Chuck,

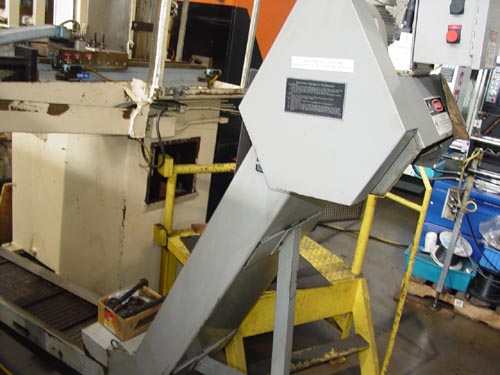

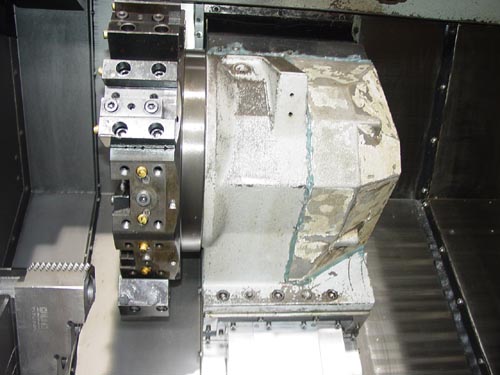

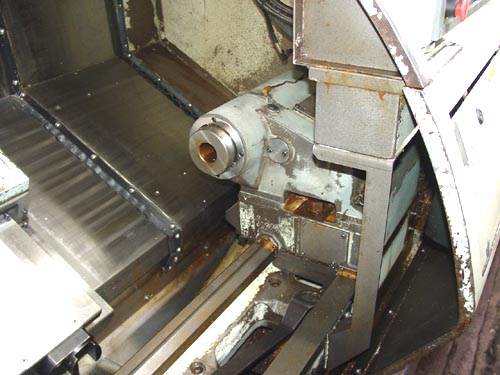

12 Position Turret, Hydraulic Tailstock with Programmable Quill, Chip
Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed .....................................
28"
Max Swing Over Saddle...................................
18.9"
Max Tail Stock Position.................................
31"
Max Turning Length......................................
25.29"
Max Work Diameter ......................................
14.17"
Chuck Size..............................................
15"
Spindle Bore............................................
3.15"
Cross Travel (X-Axis)...................................
9.05"
Longitudinal Travel (Z-Axis)............................
25.59"
Rapid Traverse Rate (X-Axis)............................
472 IPM
Rapid Traverse Rate (Z-Axis)............................
591 IPM
Tool Positions..........................................
12
Spindle Nose ...........................................
A2-8
Spindle Speed Range.....................................
65-3500 RPM
Spindle Drive Motor (30 Minute).........................
30 HP
Hydraulic Tailstock Stroke..............................
4.72"
Hydraulic Tailstock Taper...............................
#5 MT
Approximate Machine Dimensions..........................
135" x 72"
Approximate Machine Weight..............................
15,000 LBS
CONDITION: Machine Has Only 5459 Cutting Hours and
Appears to be
