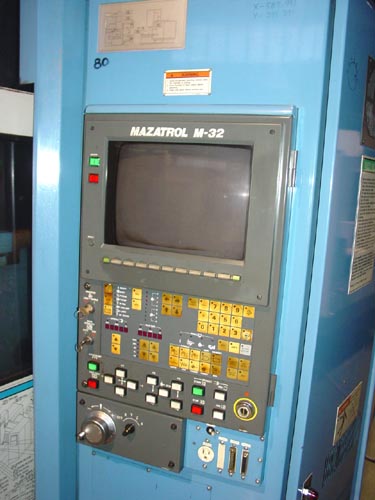

Mazatrol
M-32 CNC Color Conversational Control, Tool Life Monitoring, Tool Breakage
Detection, Tool Length Measuring System, Full Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:
Longitudinal Travel (X-Axis) ...........................
39.4"
Vertical Travel (Y-Axis) ...............................
27.56"
Spindle Travel (Z-Axis) ................................
18"
Distance Between Columns ...............................
31.5"

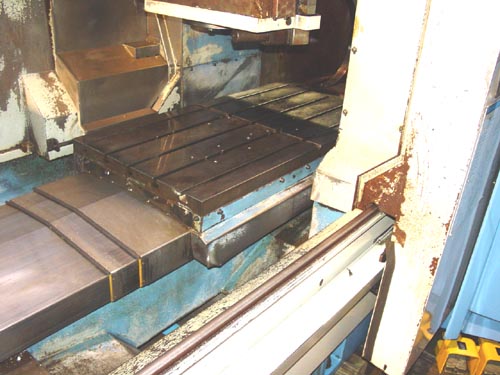

Table Size..............................................
25.9" x 48.8"
Table Load Capacity ....................................
3300 LBS
Feed Rate, All Axes ....................................
.04-197 IPM
Rapid Traverse, (X & Y Axis) ...........................
945 IPM
Rapid Traverse, (Z Axis) ............................... 708
IPM
Spindle Horsepower...................................... 25
HP
Spindle Speed Range.....................................
4000 RPM
Spindle Taper .......................................... #40

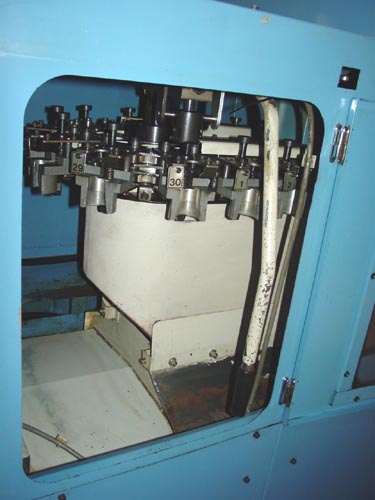

Number of Tool Stations ................................ 30
Approximate Machine Weight..............................
27,600 LBS
CONDITION: Appears to be in Excellent Condition !
