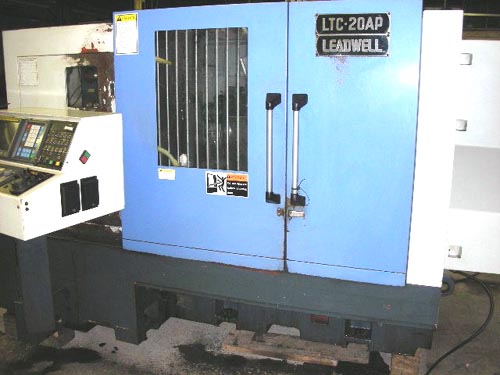

LEADWELL LTC-20 AP
Model LTC-20 AP, New 1996

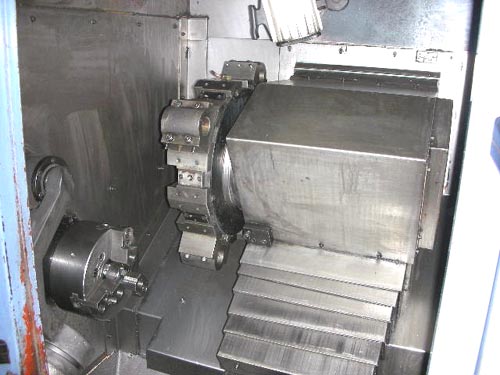

EQUIPPED WITH: Fanuc 0TF CNC, FAPT
Conversational Programming, 8" Chuck,RT, Automatic Touch Probe,
12 Position Turret, Tailstock, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over
Bed...................................... 20.96"
Max Turning
Diameter.................................... 11.8"
Max Tailstock
Position.................................. 21.7"
Max Machinable Center
Distance.......................... 21.7"
Chuck
Size.............................................. 8"
Cross Travel
(X-Axis)................................... 6.9"
Longitudinal Travel
(Z-Axis)............................ 23.6"
Feed Range (Infinitely
Variable)........................ .1-200 IPM
Rapid Traverse Rate (X & Z
Axis)........................ 588 IPM
Number of
Turrets....................................... 1
Tool
Positions.......................................... 12 Total
Spindle
Bore............................................ 2.4"
Bar
Capacity............................................ 2"
Spindle
Nose............................................ A2-6
Spindle Speed Range (1 RPM
Increments).................. 45-4500 RPM
Spindle
Horsepower...................................... 20 HP
Approximate Machine
Dimensions.......................... 127" x 86"
Approximate Machine
Height.............................. 73"
Approximate Machine
Weight.............................. 10,600 LBS
CONDITION: Machine Appears to be in Excellent
Condition !
