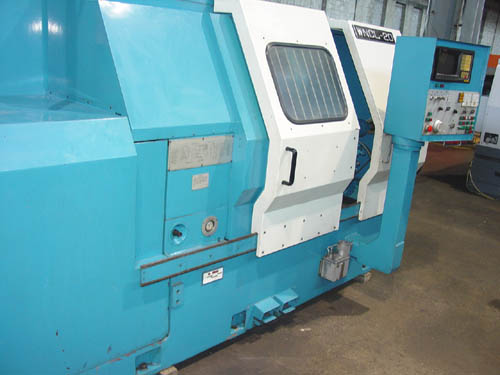

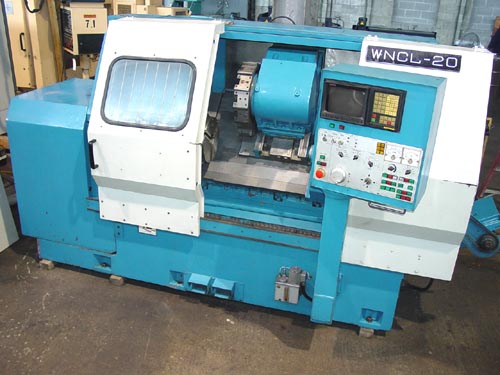

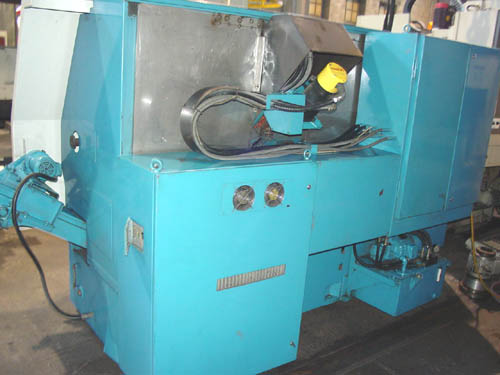

Model WNCL-20/60, S/N 5027, New 1987

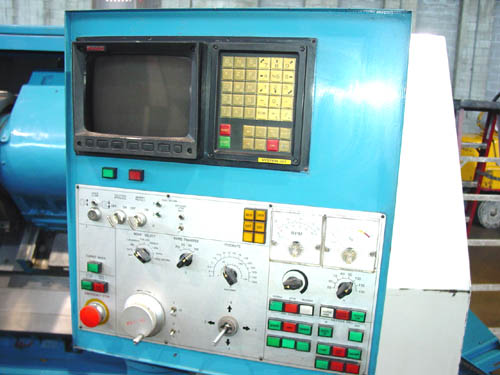

EQUIPPED WITH: Fanuc 10T CNC Control with CRT,

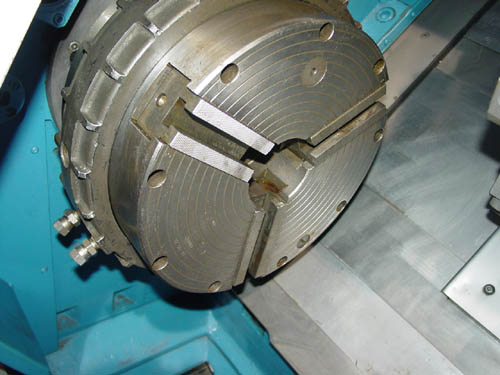

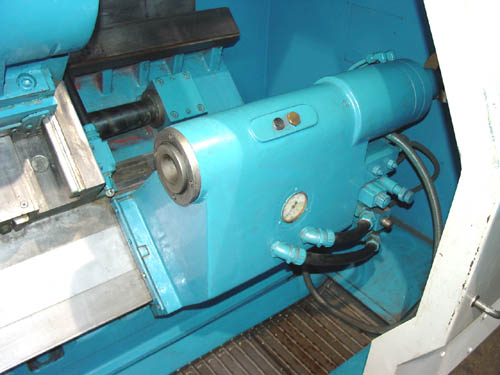

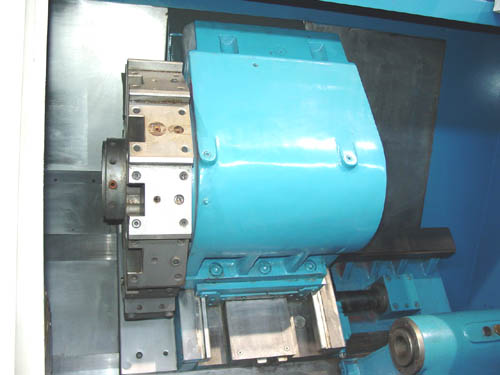

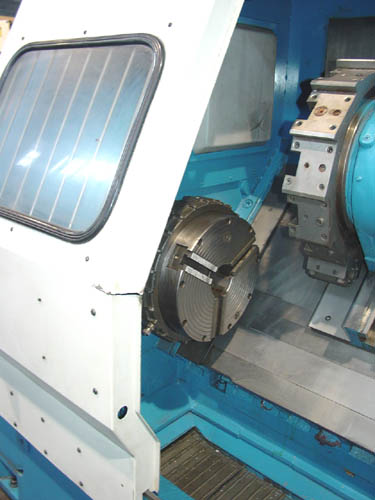

12" 3-Jaw Air Actuated Chuck, 12 Position Turret, Programmable

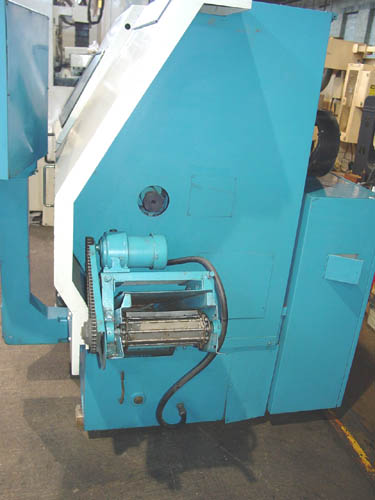

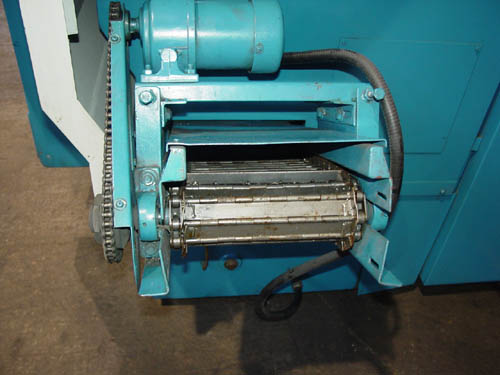

Tailstock, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
21.3"
Max Swing Over Carriage.................................
10.2"
Max Distance Between Centers............................
24"
Chuck Size..............................................
12"
Cross Travel (X-Axis)...................................
6"
Longitudinal Travel (Z-Axis)............................
25"
Number of Turrets.......................................
1
Tool Positions..........................................
12 Total
Bar Capacity............................................
3"
Spindle Speed Range.....................................
20-3500 RPM
Spindle Horsepower......................................
25 HP
Electrics...............................................
220/3/60
Approximate Machine Dimensions..........................
140" x 96"
Approximate Machine Height..............................
80"
Approximate Machine Weight..............................
12,500 LBS
CONDITION: Machine Appears to be in Excellent Condition
!
