S/N 4493, New 1980

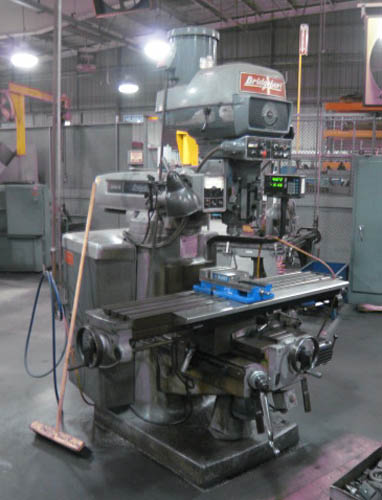

EQUIPPED WITH: This Machine is the Large Frame 5 HP
Bridgeport with a 4J Style Variable Speed Head, #40 Quick Change Spindle,
2-Axis Digital Readouts, Knee Lock, Swivel Type Dovetail Overarm, Head
Adjusts 90 Degrees Left or Right and 30 Degrees Front or Back, 360 Degree
Rotation, One Shot Lubrication.
SPECIFICATIONS:
Table Dimensions (Overall), W x L.........................
11" x 58"
Table Working Surface, W X L..............................
11" x 58"
Table Load Capacity.......................................
1500 LBS
Longitudinal Table Travel (X-Axis)........................
30"
Cross Saddle Travel (Y-Axis)..............................
15"
Vertical Knee Travel (Z-Axis).............................
16"
Quill Travel..............................................
5"
Ram Travel................................................
16"
Spindle Taper.............................................
40 QC
Spindle Speeds Range......................................
50-3500 RPM
Motor, Horsepower......................................... 5
HP
Approximate Machine Dimensions............................
84" x 120"
Approximate Machine Height................................
93"
Approximate Machine Weight................................
5500 lbs.
CONDITION: Machine Appears to be in Excellent Condition !
