S/N
HC40615, New 1992
EQUIPPED WITH: Fanuc 15 M CNC Control w/ 14"
Color CRT, RS232 Port, Graphic Function, Part Program Storage and Editing,
Background Edit, Canned Cycles, Backlash Compensation, Dwell, Dry Run, 50

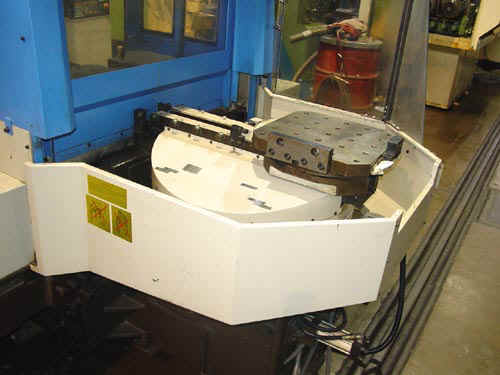

Station Automatic Tool Changer Option, (2) 16" Full Contouring 4th
Axis Pallets (360,000 Positions), Work Light, Chip Conveyor, Coolant
System.
CATALOGUE SPECIFICATIONS:
Longitudinal Table Travel (X-Axis)...................
20"
Vertical Travel (Y-Axis).............................
18"
Head Cross Travel (Z-Axis)...........................
18"
Pallet Dimensions....................................
16" x 16"
Maximum Pallet Load.................................. 880
LBS
Number of Pallets.................................... 2
Number of Index Positions............................
360,000
Feed Rate, All Axes..................................
.01-200 IPM
Rapid Traverse, All Axes............................. 590
IPM
Spindle Horsepower................................... 7.5
HP
Spindle Speed Range..................................
60-6000 RPM
Spindle Taper........................................ #40
Number of Tool Positions............................. 50
Approximate Machine Dimensions.......................
154" x 96"
Approximate Machine Height...........................
105"
Approximate Machine Weight...........................
14,300 LBS
CONDITION: This Machine Has Been Running Plastic and
Appears to be in
