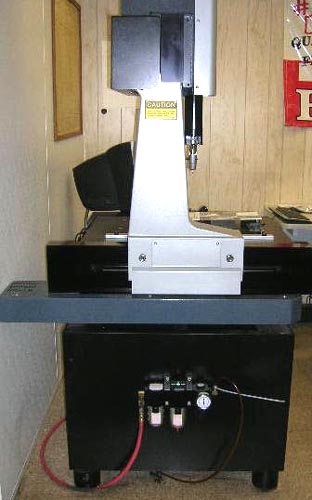

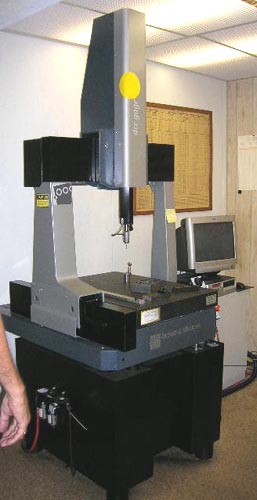

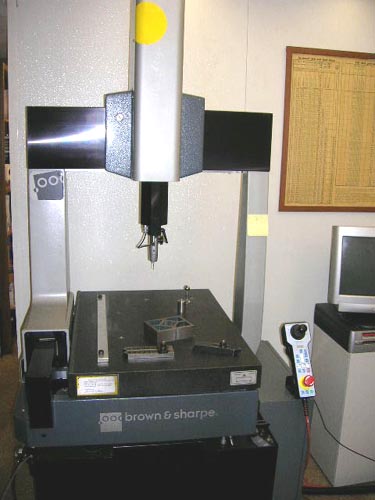

Model DCC
GAGE 454, New 2004
EQUIPPED WITH: Direct

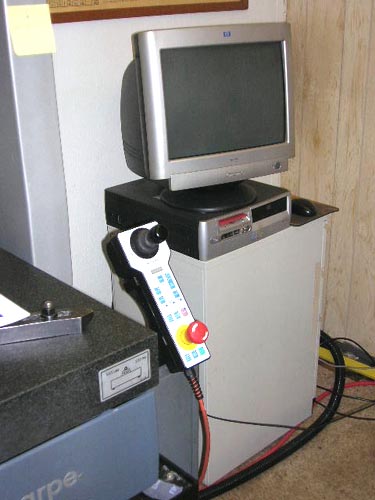

Computer Control, PC-DMIS CAD Software, Pentium 4 2.4 GHz/256 MB RAM/40
GB/CD-ROM Desktop Computer System, Windows XP Operating System, 30" x
48" Computer Work Station, 17" Color Super VGA Monitor, HP DeskJet
840 Printer, FBII Control, Renishaw TESASTAR Touch Trigger Probe, Calibration
Sphere.
CATALOGUE SPECIFICATIONS:
Work Capacity
(X-Axis)................................... 22"
Work Capacity
(Y-Axis)................................... 29.6"
Work Capacity
(Z-Axis)................................... 19"
Measuring Range
(X-Axis)................................. 18"
Measuring Range
(Y-Axis)................................. 20"
Measuring Range
(Z-Axis)................................. 16"
Maximum Table
Load....................................... 500 Lbs.
Display
Resolution....................................... .00001"
Maximum Vector Positioning
Velocity...................... 12"/Second
Maximum
Acceleration..................................... 11.6"/Second
Approximate Machine
Dimensions........................... 34" X 43"
Approximate Machine
Height............................... 86"
Approximate Machine
Weight............................... 1,000 lbs
CONDITION: Machine Appears to be in
Excellent Condition
