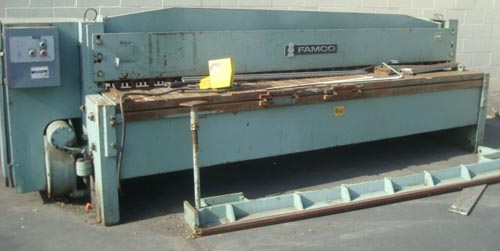

10' x 10 GA FAMCO
MECHANICAL POWER SQUARING SHEAR
Model 1010, S/N S-R68W496
EQUIPPED WITH:
36" Rear Operated Manual Back Gauge, 10' Squaring Arm, (2) Front
Support
Arms, One Shot Lubrication.
CATALOGUE SPECIFICATIONS:
Shearing Capacity, Mild Steel ...................... 10'x 10 GA
Shearing Capacity, Stainless Steel ................. 10'x 14 GA
Length Between Housings ............................ 120"
Strokes Per Minute ................................. 65 SPM
Rake, Taper Per Foot ............................... 3/8"
Number of Holddown Feet ............................ 24
Back Gauge Range.................................... 36"
Motor Horsepower ................................... 7.5 HP
Approximate Machine Dimensions .................... 158" x 60"
Approximate Machine Height ......................... 63"
Approximate Machine Weight ......................... 11,000 LBS
CONDITION: Machine Appears to be in Excellent Condition!
