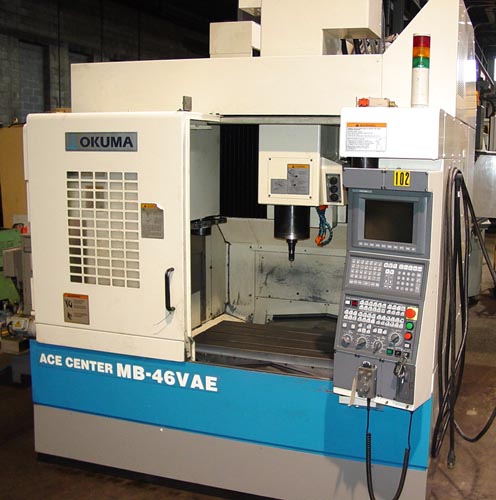

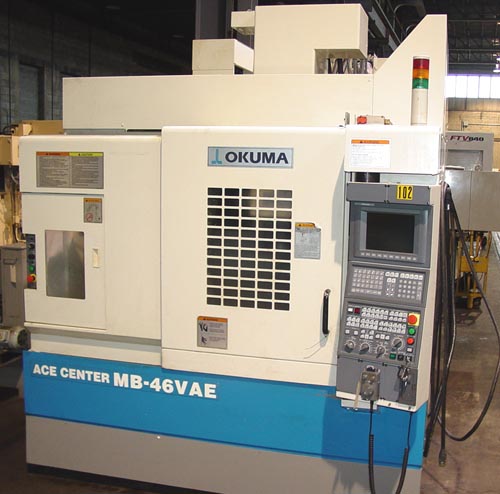

Model MB-46VAE, New 2004, S/N 105121
EQUIPPED WITH: Okuma OSP E100M CNC Control, 9"

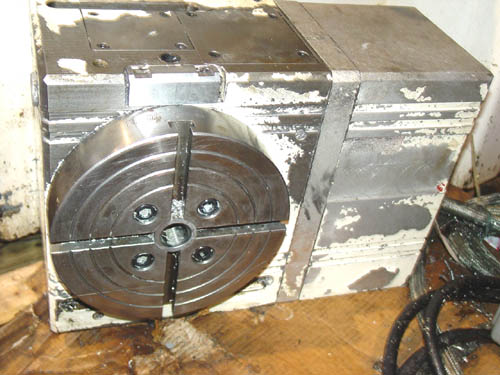

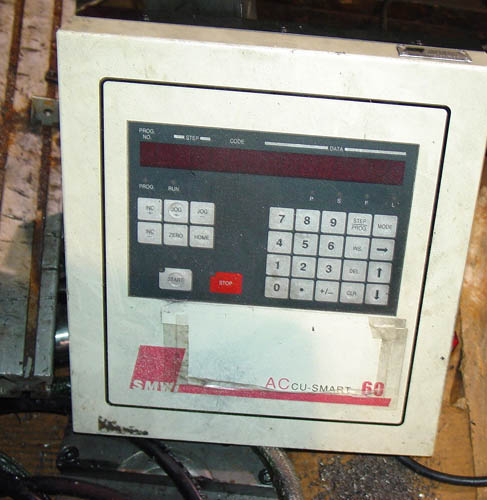

SMW Indexer, Thru the Spindle Coolant, Graphics, Floppy, Animation, Exact
Stop, Inch/Metric Switchable, Sequence-Stop, Area-Machiing, Graphic-IMAP,
Rigid Tapping, Tool Data
200, Cycle
Time Reduction, (4) Spare M-Codes, 20 Station Automatic Tool Changer, Steel

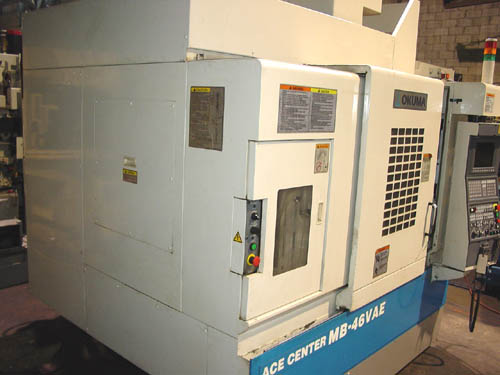

Telescoping Way Covers, Total Chip and Machine Enclosure, Transformer, Work

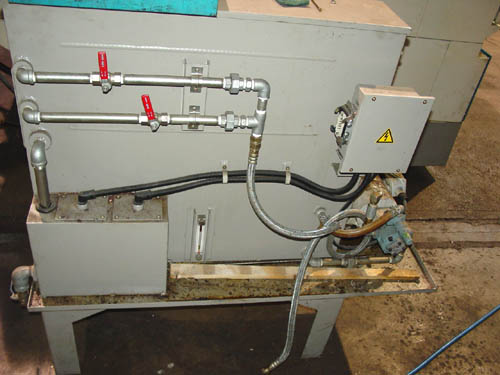

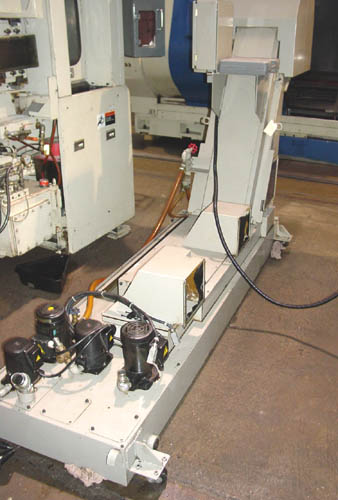

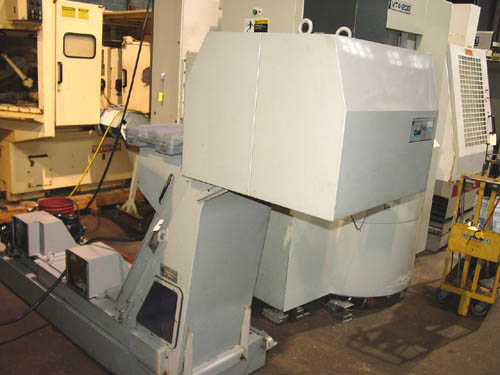

Light, Lift Up Chip Conveyor, Flood Coolant System.
CATALOGUE SPECIFICATIONS:

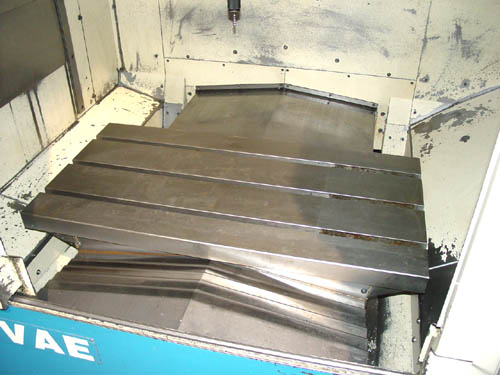

Table Working Surface.............................
39.37" x 18.11"
Table Load Capacity............................... 1,540 LBS
Longitudinal Travel (X-Axis)...................... 30"
Cross Travel (Y-Axis).............................
18.11"
Vertical Travel (Z-Axis)..........................
18.11"
Rapid Traverse Rate(X&Y Axes)..................... 1575
IPM
Rapid Traverse Rate(Z Axis)....................... 1181 IPM
Tool Storage Capacity............................. 20
Tool to Tool Change Speed......................... 1.2 Sec.
Spindle Horsepower................................ 15 HP
Spindle Speeds Range.............................. 50-8000
RPM
Spindle Taper..................................... CAT 40
Approximate Machine Dimensions.................... 106"
x 86"
Approximate Machine Height........................ 109"
Approximate Machine Weight........................ 14,300
LBS
CONDITION: Machine Appears to be in Excellent Condition !!
Machine has
