Model 18U-60, Series MO, New 1988
EQUIPPED WITH: Acramatic 850 CNC Control w/CRT,

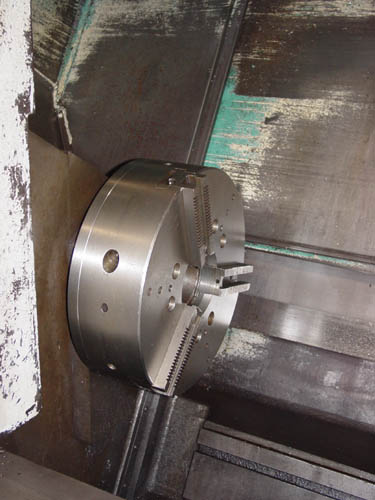

18" 3 Jaw Chuck, 6 Station OD & 6 Station ID Tool Turrets,
Chip Conveyor, & Coolant System.
NOTE: This Machine Does NOT Have a Tailstock!
CATALOGUE SPECIFICATIONS:
Max Swing Over the Slant
Bed............................ 28"
Max Swing Over
Carriage................................. 18"
Cross Travel
(X-Axis)................................... 22.5"
Max Travel
(Z-Axis)..................................... 67.94
Tool Positions (6 ID & 6
OD)............................ 12
Spindle Speed
Range..................................... 16-1600 RPM
Spindle
Nose............................................ A1-11
Hole Thru
Spindle....................................... 4.5"
Hole Thru
Chuck......................................... 4.125"
Cross Feed Range (Infinitely
Variable).................. 0-200 IPM
Longitudinal Feed Range (Infinitely
Variable)........... 0-200 IPM
Rapid Feed
Rate......................................... 400 IPM
Spindle
Horsepower...................................... 50 HP
Approximate Machine
Dimensions.......................... 25'8" x 14'6"
Approximate Machine
Height.............................. 10'
Approximate Machine
Weight.............................. 31,800 LBS
CONDITION: Machine Appears to be in Very Good
Condition!
