Fanuc
OT CNC Control with CRT, Multiple Part Program Storage, Tailstock,
Manual Tool Touch Probe, 10 Station Tool Turret, Automatic Lubrication

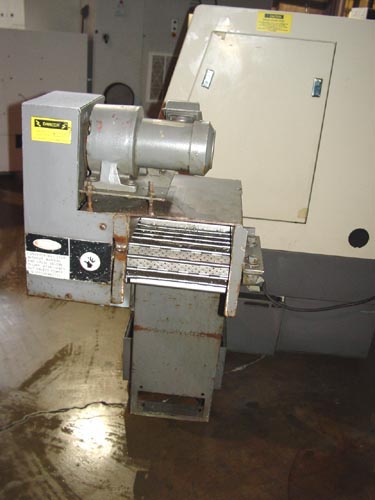

System, Chip Conveyor, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed......................................
19.5"
Max OD Turning Capacity w/Standard Tooling..............
7.5"
Max Machinable Center Distance..........................
22"
Cross Travel (X-Axis)...................................
8.74"
Longitudinal Travel (Z-Axis)............................
21.5"
Rapid Traverse Rate (X-Axis)............................
472 IPM
Rapid Traverse Rate (Z-Axis)............................
630 IPM
Number of Turrets.......................................
1
Tool Positions..........................................
10
Spindle Bore............................................
1.625"
Barstock Capacity Diameter..............................
1.625"
Spindle Speed Range (1 RPM Increments)..................
50-5000 RPM
Approximate Machine Dimensions..........................
86" x 67"
Approximate Machine Height..............................
70"
Approximate Machine Weight..............................
7,200 LBS
CONDITION: Machine Appears to be in Excellent Condition!
+
