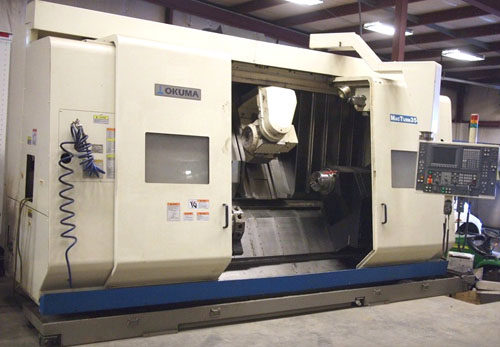

EQUIPPED WITH:  OSP E100L CNC Control, B-Axis, Live Tooling, Sub Spindle, Y-Axis, C-Axis, Upper Turret w/ Automatic Toolchanger, Lower Turret, RS-232 Port, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

Max Swing Over Bed ..................................... 21.65"

Max Turning Diameter.................................... 20.87"

Main Spindle Horsepower................................. 30 HP

Sub Spindle Horsepower.................................. 15 HP

Rotary Tooling Horsepower............................... 7.5 HP

Rotary Tooling Maximum RPM.............................. 6000 RPM

Cross Travel (X-Axis)................................... 19.88"

Longitudinal Travel (Z-Axis)............................ 65.75"

Y-Axis Travel Upper Slide Only.......................... 7.48"

Lower Turret Cross Travel (X2-Axis)..................... 8.27"

Lower Turret Longitudinal Travel (Z2-Axis).............. 65.16"

Rapid Traverse Rate (X-Axis & X2-Axis).................. 1161 IPM

Rapid Traverse Rate (Z-Axis & Z2-Axis).................. 1575 IPM

Approximate Machine Dimensions.......................... 180" x 115"

Approximate Machine Height.............................. 116"

Approximate Machine Weight.............................. 32,000 LBS
