Program
Storage, 5C Indexer, Self Diagnostics, 21 Station Automatic Tool Changer,
Indexer, Axis Error Compensation, Full Enclosure, Coolant System.
CATALOGUE SPECIFICATIONS:

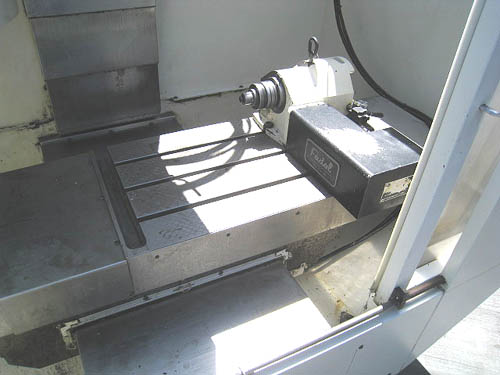

Table Working Surface.................................
29.5" x 16"
Table Load Capacity................................... 1,000
LBS
Longitudinal Travel (X-Axis)..........................
20"
Cross Travel (Y-Axis).................................
16"
Vertical Travel (Z-Axis).............................. 14"
Spindle Nose to Table.................................
4" - 18"
Rapid Traverse Rate (X & Y-Axes)...................... 700 IPM
Rapid Traverse Rate (Z-Axis).......................... 700
IPM
Tool Storage Capacity................................. 16

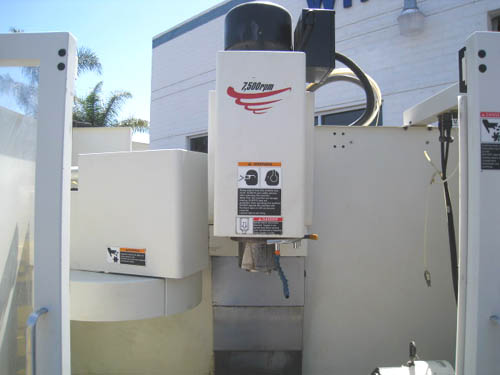

Spindle Horsepower.................................... 12 HP
Spindle Speeds Range.................................. 10-
7500 RPM
Spindle Taper......................................... #40
Cat
Electrics............................................. 240/3/60
Approximate Machine Dimensions........................ 75" x
77"
Approximate Machine Height............................ 92"
Approximate Machine Weight............................ 4,800
LBS
CONDITION: Appears to be in Excellent Condition !
