MAKINO A51 CNC HORIZONTAL MACHINING CENTER

Stock Number P11954

MAKINO A51 FOR SALE CNC MILL USED CNC MILL CNC HORIZONTAL MACHINING CENTER

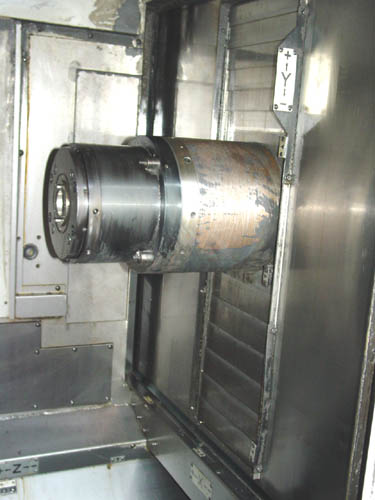

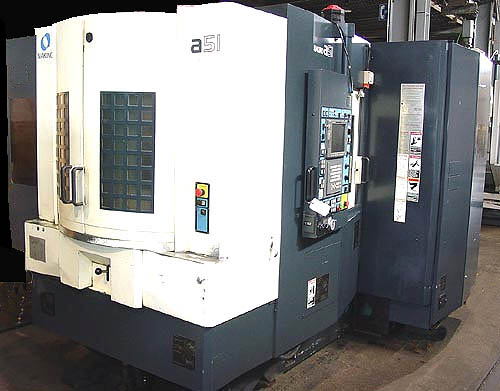

ACTUAL PHOTOS

MAKINO A51 CNC HORIZONTAL MACHINING CENTER

New 2005

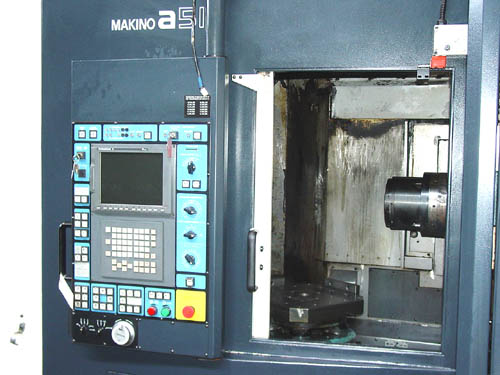

EQUIPPED WITH: Fanuc Professional 3 CNC Control w/Color CRT (Fanuc 16i), Multi-Part Program Storage, (2) 15.7" x 15.7" Fully Contouring Pallets (360,000 Positions), Thru the Spindle Coolant, Tool Life Monitor, Spindle Load Monitor, 60 Station Automatic Tool Changer, Chip Conveyor.

CATALOGUE SPECIFICATIONS:

Longitudinal Travel (X-Axis) ........................... 22.05"

Vertical Travel (Y-Axis) ............................... 22.05"

Spindle Travel (Z-Axis) ................................ 23.6"

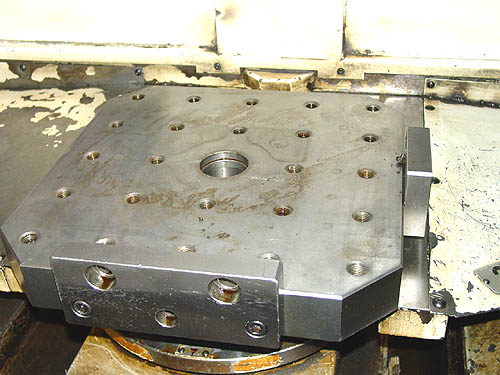

Pallet Dimensions ...................................... 15.7"x15.7"

Maximum Pallet Load .................................... 880 LBS

Number of Pallets ...................................... 2

Number of Index Positions............................... 360,000

Feed Rate, All Axes .................................... 1574 IPM

Rapid Traverse, All Axes ............................... 1969 IPM

Spindle Horsepower...................................... 25 HP

Spindle Speed Range..................................... 50 - 12000 RPM

Spindle Taper ..........................................

Number of Tool Stations ................................ 60

Electrics .............................................. 460/3/60

Approximate Machine Dimensions ......................... 183" x 75"

Approximate Machine Height.............................. 111"

Approximate Machine Weight.............................. 17,200 LBS

CONDITION: Machine Appears to be in Excellent Condition !
