CINCINNATI MAGNUM 800 CNC HORIZONTAL MACHINING CENTER

Stock Number P11957

CINCINNATI MAGNUM 800 FOR SALE CNC MILL USED CNC MILL CNC HORIZONTAL MACHINING CENTER

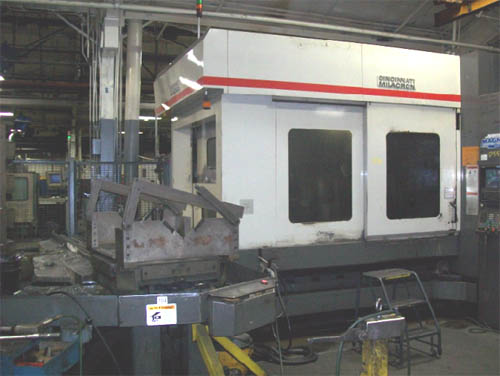

ACTUAL PHOTOS

CINCINNATI MAGNUM 800 HORIZONTAL MACHINING CENTER

New 1995

EQUIPPED WITH: Acramatic 950 CNC Control w/Color CRT, Touch Screen Programming, Multi-Part Program Storage, (6) 800mm x 800mm pallets with One Degree Indexing, Load/Unload Station, 90 Station Automatic Tool Changer, Probing, Chip Conveyor, Coolant System.

CATALOGUE SPECIFICATIONS:

Longitudinal Travel (X-Axis) ........................... 51.2"

Vertical Travel (Y-Axis) ............................... 43.3"

Spindle Travel (Z-Axis) ................................ 44.3"

Pallet Dimensions ...................................... 31.5"x 31.5"

Maximum Pallet Load .................................... 4847 LBS

Number of Pallets ...................................... 6

Number of Index Positions............................... 360

Feed Rate, All Axes .................................... .04-709 IPM

Rapid Traverse, All Axes ............................... 709 IPM

Spindle Horsepower...................................... 40 HP

Spindle Speed Range..................................... 10 - 6,500 RPM

Spindle Taper .......................................... #50 CAT

Number of Tool Stations ................................ 90

Approximate Machine Dimensions ......................... 225" x 337"

Approximate Machine Height.............................. 136"

Approximate Machine Weight.............................. 58,000 LBS

CONDITION: Machine Appears to be in Excellent Condition !
