Stock Number P11958

Cincinnati 20V-80 5 Axis For Sale, CNC mill, used CNC mill, Machining Center

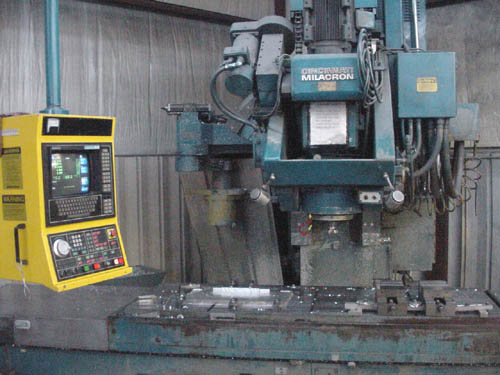

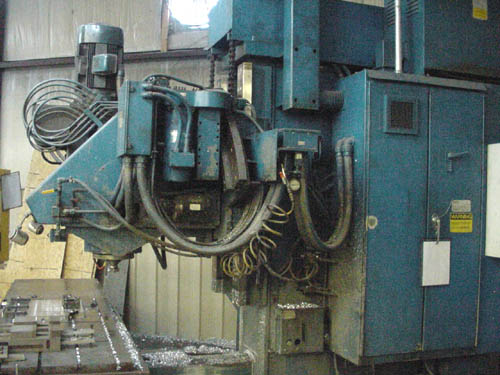

CINCINNATI 20V-80 5 AXIS CNC VERTICAL PROFILING/CONTOURING MACHINING CENTER

Model 20V-80, New 1986/2009

EQUIPPED WITH:

Acramatic 950 CNC Control w/CRT, Heavy Duty CAT 50 Spindle Taper, Coolant System.

CATALOGUE SPECIFICATIONS:

Table Working Surface, W x L........................... 30"x84"

Table Load Capacity.................................... 7000 LBS

A Axis Cross Plane Spindle Carrier..................... 50 Degrees

B Axis Longitudinal Plane Spindle Carrier.............. 50 Degrees

X Axis Table Longitudinal Travel....................... 80"

Y Axis Saddle Cross Travel............................. 30"

Z Axis Spindle Carrier Vertical Travel................. 24"

Spindle Taper.......................................... #50 CAT

Spindle Speeds, Infinite Range......................... 20 to 3600 RPM

X,Y, & Z Axis Feeds, Range............................. 0 to 150 IPM

A & B Axis Feedrates, Range, Degrees Per Minute........ 0 to 240 DPM

Spindle Motor.......................................... 20 HP

Approximate Machine Dimensions......................... 204"x224"

Approximate Machine Height............................. 140"

Approximate Machine Weight............................. 51,000 LBS

CONDITION: Machine Appears to Be in Excellent Condition !
