LEBLOND MAKINO MC 1513 CNC HORIZONTAL MACHINING CENTER

Stock Number P11965

LEBLOND MAKINO MC 1513 FOR SALE CNC MILL USED CNC MILL CNC HORIZONTAL MACHINING CENTER

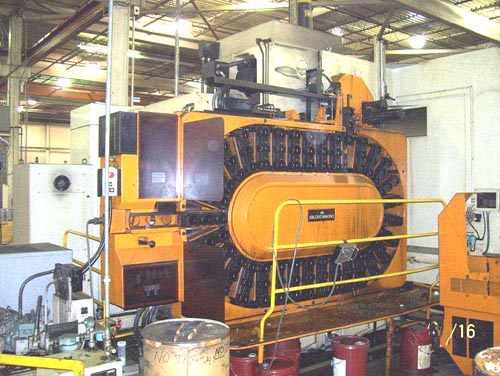

ACTUAL PHOTOS

LEBLOND MAKINO MC1513 CNC HORIZONTAL MACHINING CENTER

Model MC1513, New 1986

EQUIPPED WITH: Fanuc 11M CNC Control w/CRT, Color Graphics, Two 32.5" (1) Degree Indexing Pallets, (3) Spare 32.5" Pallets, 99 Position Automatic Tool Changer, RS-232 Port, CAT 50 Spindle Taper, 30 HP Geared Head Spindle, Full Coolant Enclosure w/ Automatic Pallet Doors, and Coolant System.

CATALOGUE SPECIFICATIONS:

Longitudinal Travel (X-Axis) ........................... 59.06"

Vertical Travel (Y-Axis) ............................... 51.18"

Spindle Travel (Z-Axis) ................................ 39.37"

Pallet Dimensions ...................................... 32.5"x 32.5"

Maximum Pallet Load .................................... 6600 LBS

Number of Pallets ...................................... 2

Number of Index Positions............................... 360

Feed Rate, All Axes .................................... .04 - 160 IPM

Rapid Traverse, All Axes ............................... 480 IPM

Spindle Horsepower...................................... 30 HP

Spindle Speed Range..................................... 10-4000 RPM

Spindle Taper .......................................... #50 CAT

Number of Tool Stations ................................ 99

Approximate Floorspace Dimensions ...................... 211" x 292"

Approximate Machine Height ............................. 151"

Approximate Machine Weight ............................. 58,300 LBS

CONDITION: Appears to be in Excellent Condition!
