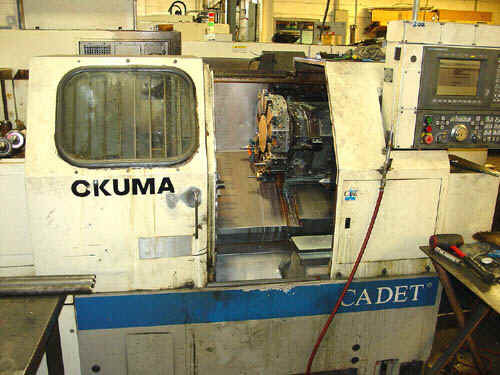

Model 210, New 1994

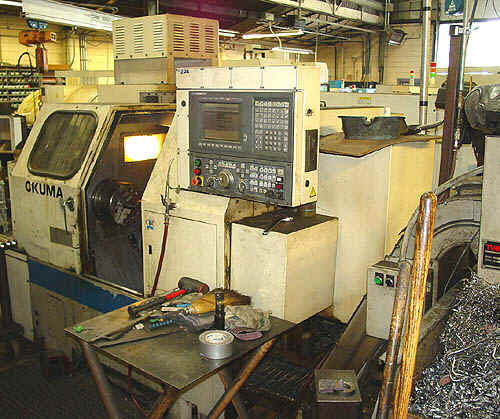

EQUIPPED WITH: Acramatic 850SX CNC Control with

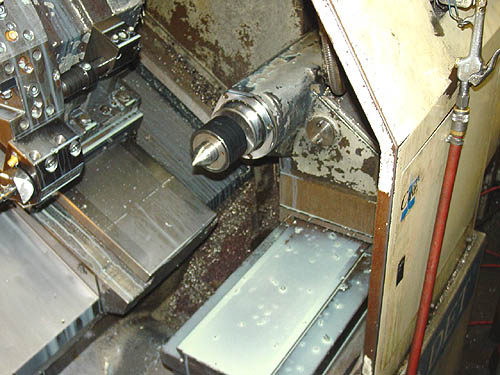

14" CRT, RS-232 Port, 12 Position Turret, Programmable Tail
stock, Chip Conveyor and Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over
Bed...................................... 20.86"
Max Swing Over
Carriage................................. 11.80"
Max Tailstock
Position.................................. 21.60"
Max Machinable Center
Distance.......................... 23.60"

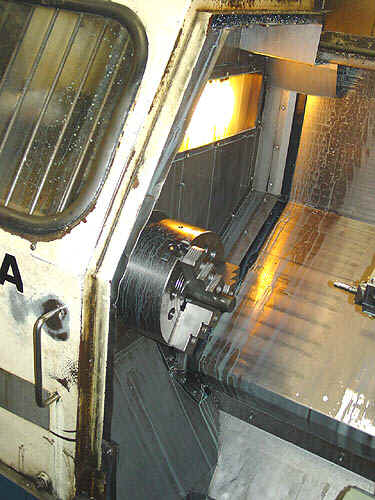

Chuck
Size.............................................. 10"
Cross Travel
(X-Axis)................................... 6.8"
Longitudinal Travel
(Z-Axis)............................ 23.6"
Feed Range (Infinitely
Variable)........................ .1-200 IPM
Rapid Traverse Rate (X & Y
Axis)........................ 600 IPM
Number of
Turrets....................................... 1
Tool
Positions.......................................... 12 Total
Spindle
Bore............................................ 2.44"
Spindle
Nose............................................ A2-6
Spindle Speed Range (1 RPM
Increments).................. 45-4500 RPM
Spindle
Horsepower...................................... 20 HP
Approximate Machine
Dimensions.......................... 127" x 86"
Approximate Machine
Height.............................. 73"
Approximate Machine
Weight.............................. 10,600 LBS
CONDITION: Machine Appears to be in Very Good
Condition !
+
