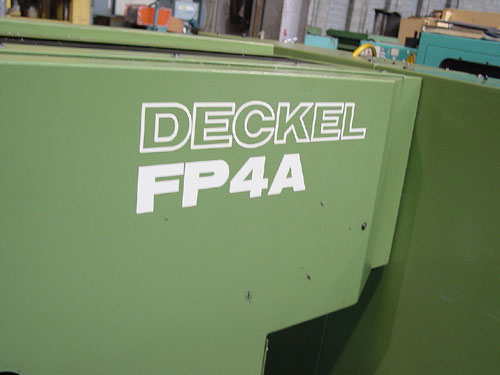

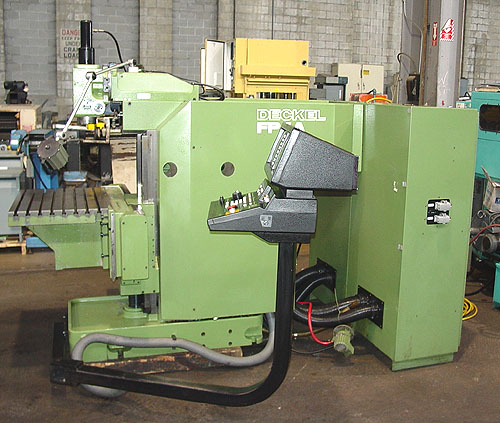

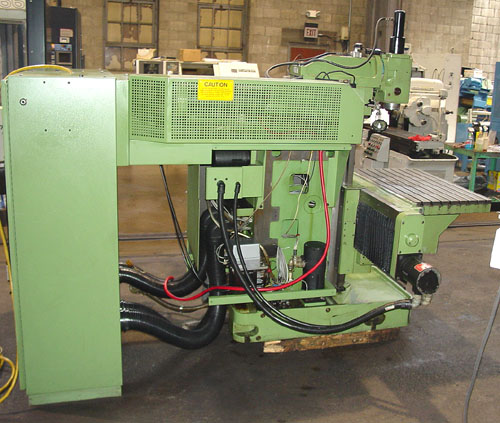

DECKEL/HURCO HORIZONTAL/VERTICAL CNC MILL

Model FP4A, S/N DHB-9001060B, New 1990

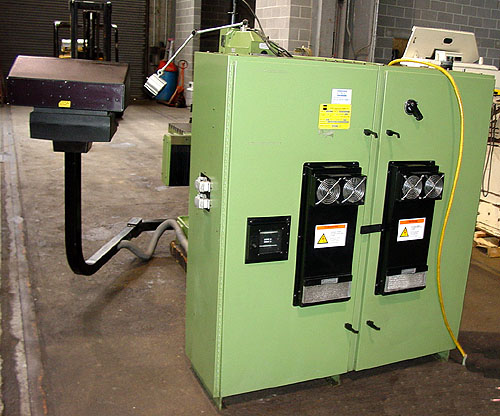

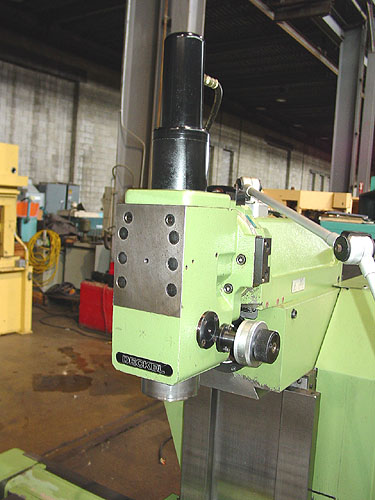

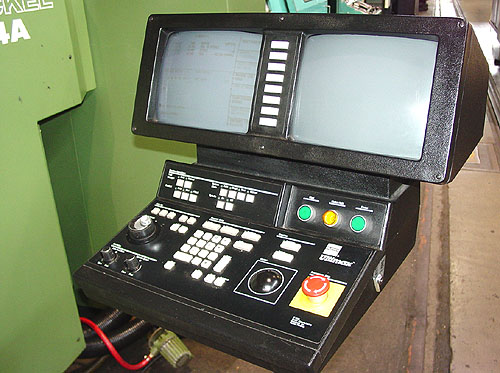

EQUIPPED WITH: Hurco Ultimax Dual Screen CNC Control, Dual RS-232 Ports, Vertical & Horizontal Spindles, Power Draw Bar, Central Lubrication, Work Light, Coolant System.

CATALOGUE SPECIFICATIONS:

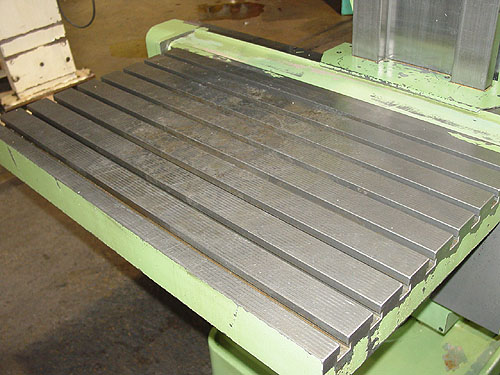

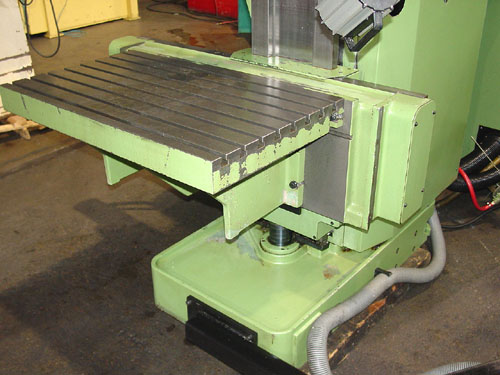

Table Size Overall ............................... 35.5" x 21"

Longitudinal Travel (X-Axis)...................... 22"

Cross Travel (Y-Axis)............................. 20"

Vertical Travel (Z-Axis).......................... 15.4"

Feed Rates, All Axes.............................. 0.1 to 150 IPM

Rapid Traverse Rate, All Axes..................... 200 IPM

Spindle Speeds Range.............................. 10-4000 RPM

Vertical Spindle Taper............................ No. 40

Horizontal Spindle Taper.......................... No. 30

Electrics......................................... 240/3/60

Approximate Machine Dimensions.................... 108" x 90"

Approximate Machine Height........................ 84"

Approximate Machine Weight........................ 8,000 LBS

CONDITION: Machine Appears to be in Excellent Condition !
