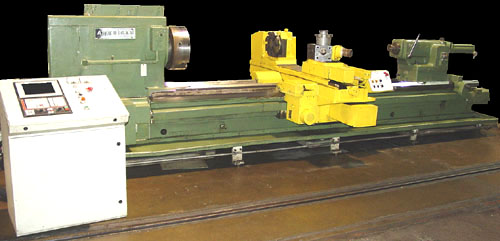

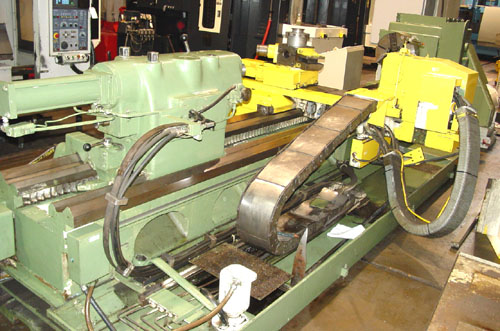

Model 3220W, S/N 80142-79, Retrofit 1998

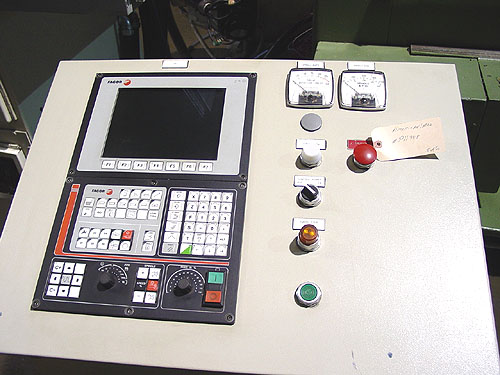

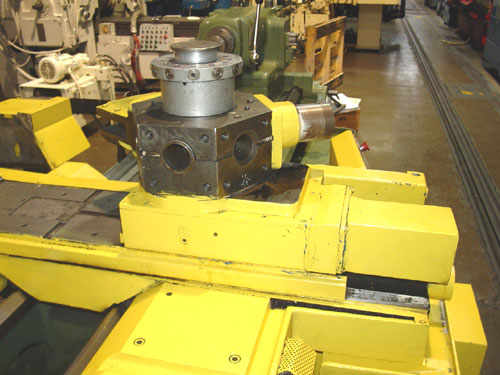

EQUIPPED WITH: Fagor 8055 TC CNC Control w/CRT, 6

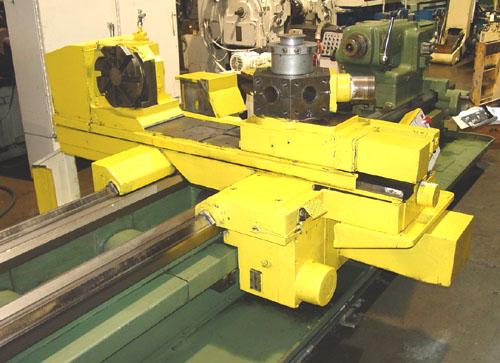

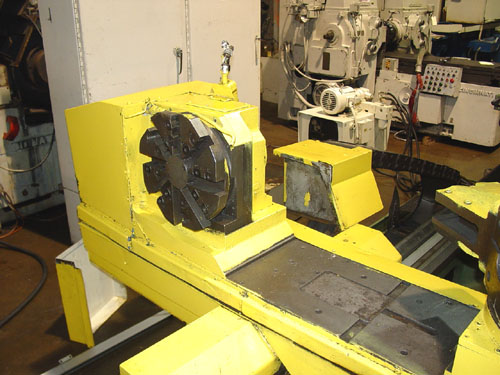

Station ID Turret, 8 Station OD Turret, Hardened Bed and Cross Slide

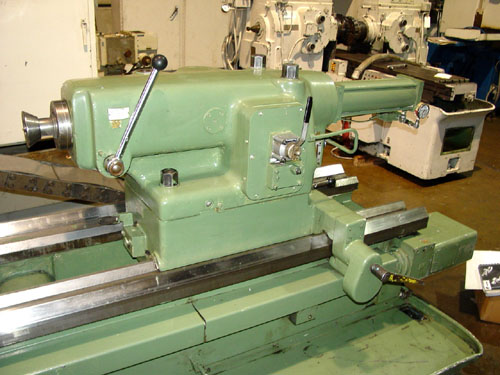

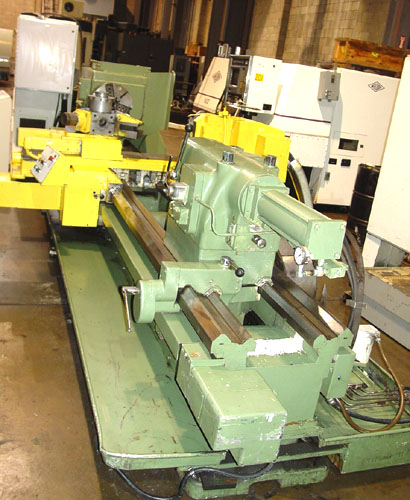

Ways, Ballscrews, Heavy Duty Tailstock w/ Hydraulic Quill and Live

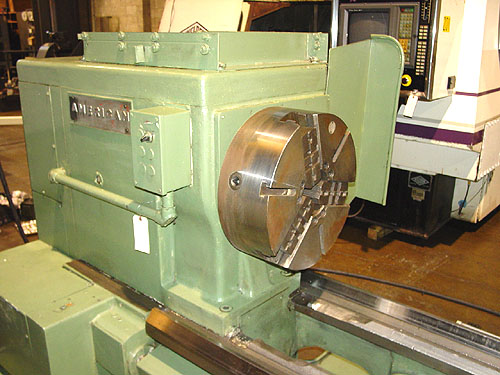

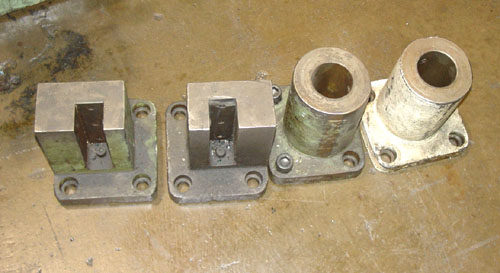

Center, 18" 3-Jaw Chuck, ID Toolholder Package, Coolant System.
CATALOGUE SPECIFICATIONS:
Max Swing Over the Bed..................................
36-1/2"
Max Swing Over Cross Slide..............................
21.5"
Max Tailstock Position..................................
120"
Max Machinable Center Distance..........................
120"
Chuck Size..............................................
18"
Cross Travel (X-Axis)...................................
23"
Longitudinal Travel (Z-Axis)............................
120"
Cross Feed Range (.01 Increment)........................
.01-20"
Longitudinal Feed Range (.01 Increment).................
.01-20"
Rapid Traverse Rate.....................................
200 IPM
Number of Turrets.......................................
2
Tool Positions ID Turret................................
6
Tool Positions OD Turret................................
8
Spindle Bore............................................
4-5/8"
Spindle Nose............................................
A1-11
Spindle Speeds (12), Range..............................
8-1200 RPM
Spindle Horsepower......................................
60 HP
Tailstock Spindle Taper.................................
#5 MT
Electrics...............................................
460/3/60
Approximate Machine Dimensions..........................
250" x 130"
Approximate Machine Height..............................
83"
Approximate Machine Weight..............................
31,000 LBS
CONDITION: Machine Appears to be in Excellent Condition
!
+
