w/ LIVE TOOLING, C-AXIS

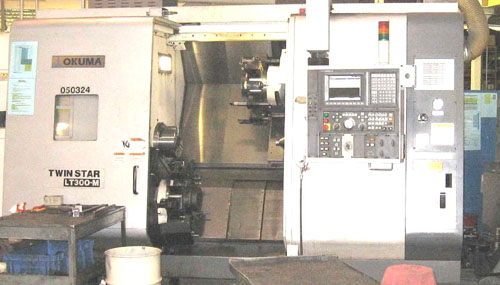

Model LT-300BBM, New 2004
EQUIPPED WITH: Okuma OSP E-100L CNC Control w/ CRT,
(2) 30 HP Opposed Synchronized Spindles, (2) 12 Position Turrets, Live
Tooling, Programmable C-Axis, (2) 10" 3-Jaw Chucks, Chip Conveyor,
Coolant System.

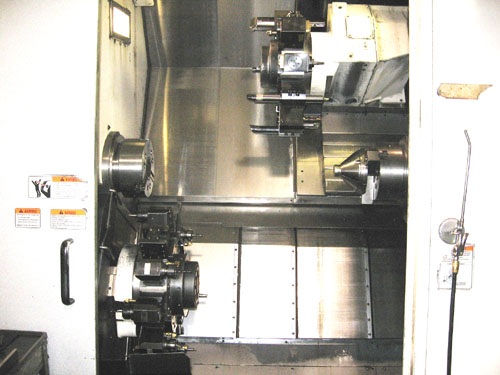

NOTE: The Okuma LT Series Turning Center Features Two Inline
Opposing Spindles and Two Tool Turrets, each Addressing its Own Spindle.
This Machine is Designed for Completing First and Second Turning Operations
in One Actual Loading. A Workpiece May be Loaded to the First Spindle, Then
Turned, Even Milled or Drilled Then Automatically and Internally Transferred
to the Second Spindle for Second Operation Turning, Milling, and/or
Drilling.
CATALOGUE SPECIFICATIONS:
Max Swing Over Bed.....................................
21.65"
Maximum Turning Diameter (each Spindle)................
13.78"
Maximum Distance Between Spindles......................
47.24"
Cross Travel Turret 1 (X1-Axis)........................
10.63"
Longitudinal Travel Turret 1 (Z1-Axis).................
36.61"
Cross Travel Turret 2 (X2-Axis)........................
9.06"
Longitudinal Travel Turret 2 (Z2-Axis).................
36.22"
Headstock 2 Travel (W1-Axis)...........................
37.01"
Minimum Spindle Indexing Angle......................... 1
Rapid Traverse Rate (X1, X2 Axes)...................... 1181
IPM
Rapid Traverse Rate (Z1-Axis).......................... 1575
IPM
Rapid Traverse Rate (Z2-Axis).......................... 1575
IPM
Number of Turrets...................................... 2
Tool Positions......................................... 12
each turret
Spindle Bore ..........................................
3.15"
Spindle Nose........................................... A2-8
Spindle Speed Range....................................
38-3800 RPM
Spindle Horsepower..................................... 30
HP
Approximate Machine Dimensions.........................
139" x 96"
Approximate Machine Height.............................
92"
Approximate Machine Weight.............................
22,000 LBS
CONDITION: This Machine Appears to be in Excellent
Condition!
