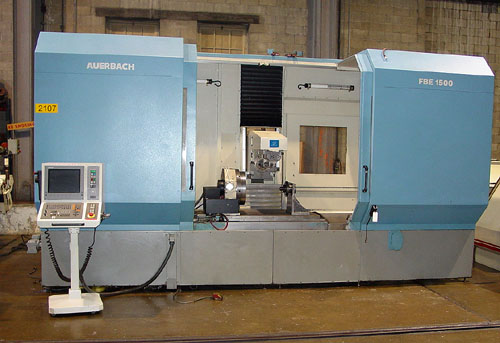

AUERBACH FBE 1500 CNC HORIZONTAL PRODUCTION MILL

Model FBE 1500, S/N 0072, New 2003

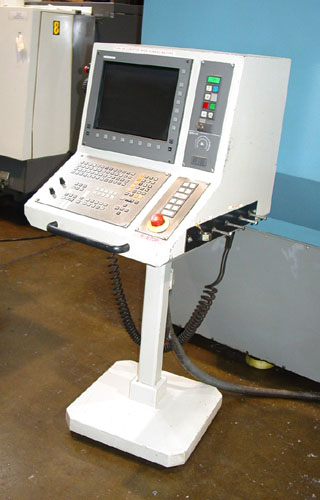

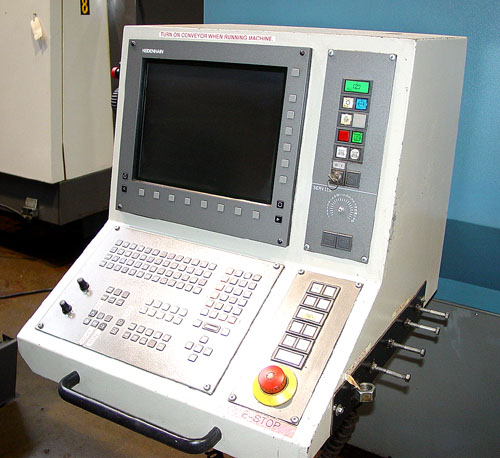

EQUIPPED WITH: Heidenhain TNC-426 CNC Control w/ Color CRT, 16" Programmable CNC Indexer, Overarm w/ Arbor Supports, Centralized Lubrication, Chip Conveyor, Coolant System.

Note: This Machine is a Quality, German Built CNC Production Mill w/ a Replacement Price Exceeding $350,000.

CATALOGUE SPECIFICATIONS:

Longitudinal Travel (X Axis)............................ 60"

Vertical Travel (Y Axis)................................ 40"

Cross Travel (Z Axis)................................... 24"

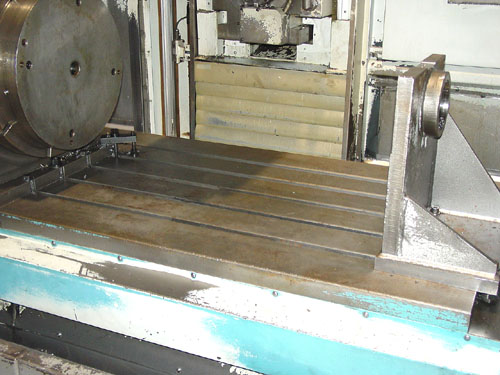

Table Working Surface (T-Slotted)....................... 32" x 64"

Table Load Capacity..................................... 9,000 LBS

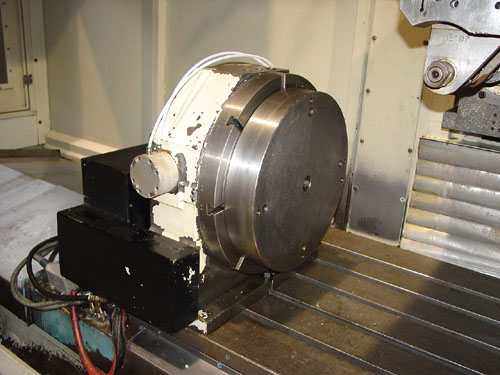

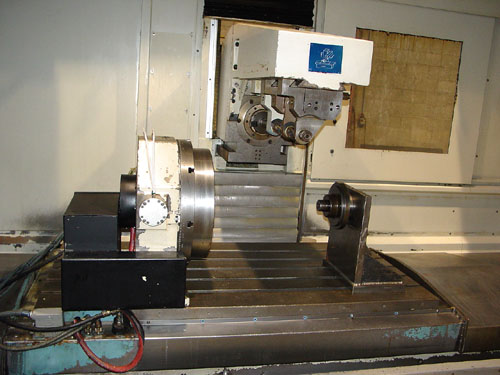

Rotary Table Size....................................... 16"

Feed Rate, All Axes..................................... .03 to 236 IPM

Rapid Traverse, All Axes................................ 590 IPM

Spindle Horsepower...................................... 40 HP

Spindle Speed, Range.................................... 30 - 800 RPM

Spindle Taper........................................... 50

Electrics .............................................. 460/3/60

Approximate Machine Dimensions.......................... 290" x 191"

Approximate Machine Height.............................. 125"

Approximate Machine Weight.............................. 30,000 LBS

CONDITION: This Machine Appears to be in Excellent Condition!
